Current position : Index > products > D1- Series Track Light Wattage: 15W

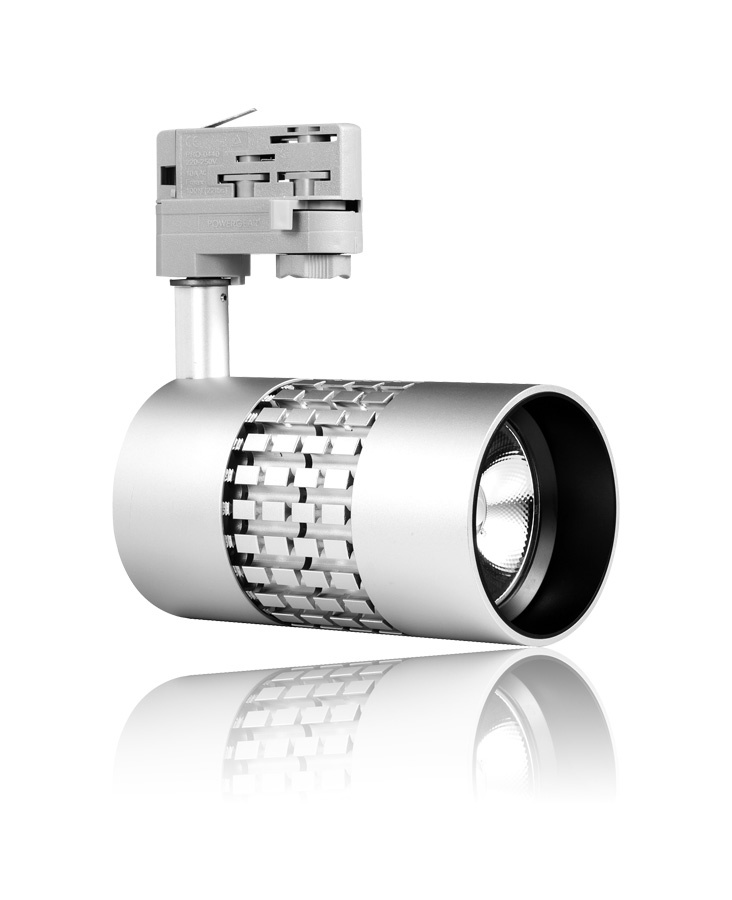

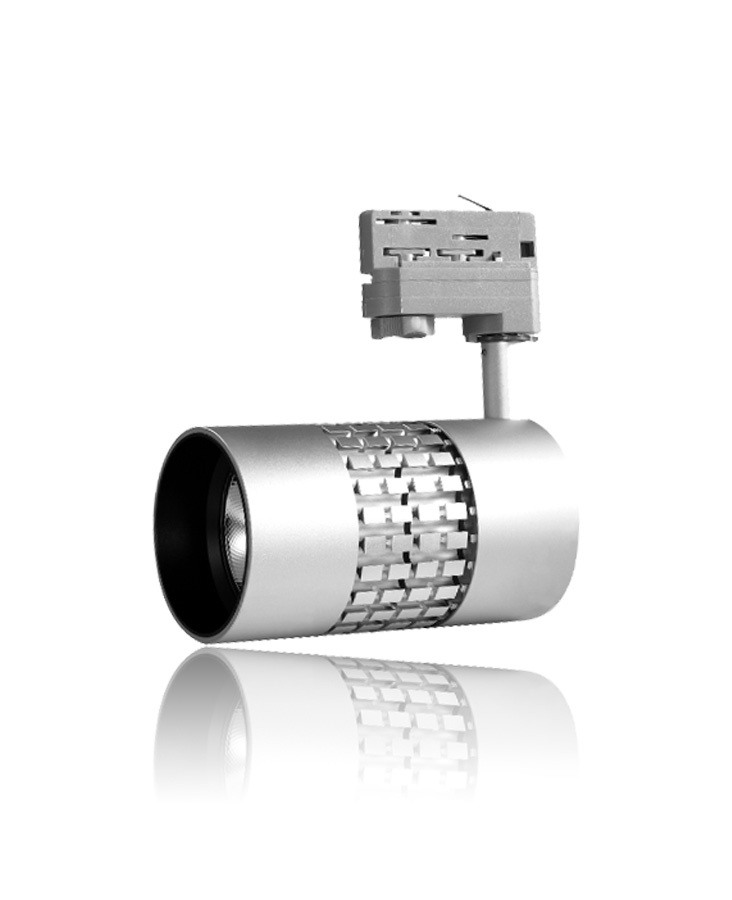

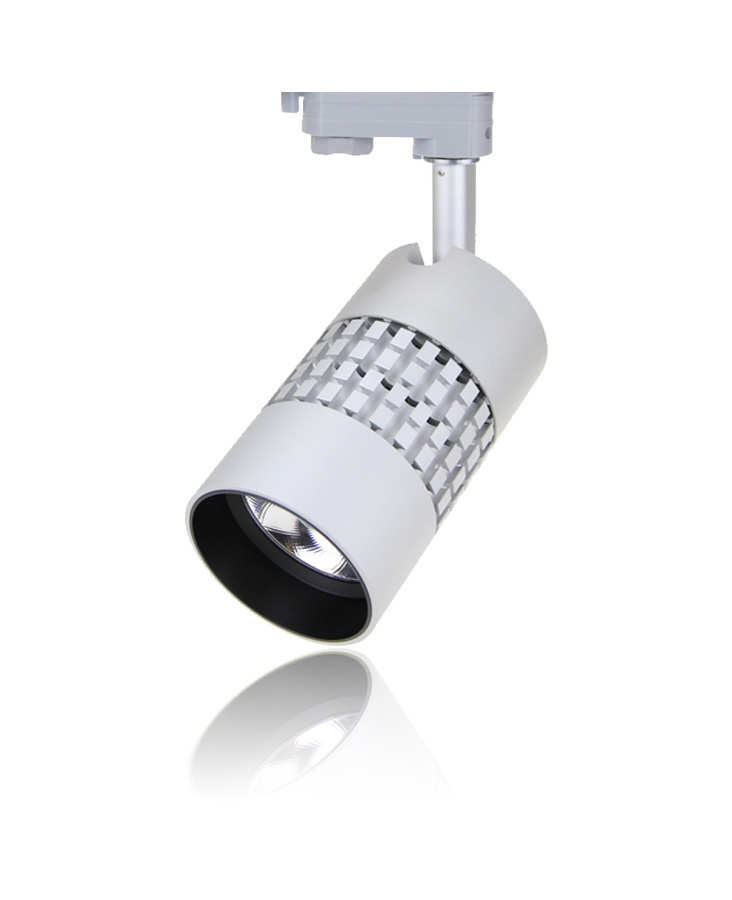

D1- Series Track Light
Wattage: 15W

Product information

Size:Φ70*124*145
Lumen/CRI:>100lm/W @CRI80
Beamangle: 10°, 24°, 36°
Power Factor: PF>0.95 Flicker free

Enquiryback

Product details

Key Features
•Size: Φ70*124*145

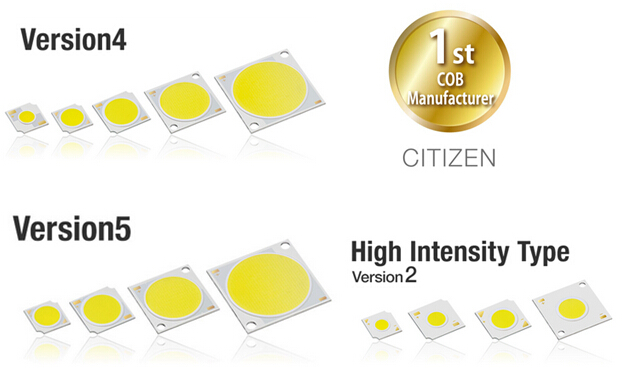

•  Citizen COB LED with CRI>97
• Lumen/CRI: >100lm/W @CRI80 (whole lamp)
•6063 brushed aluminum alloy

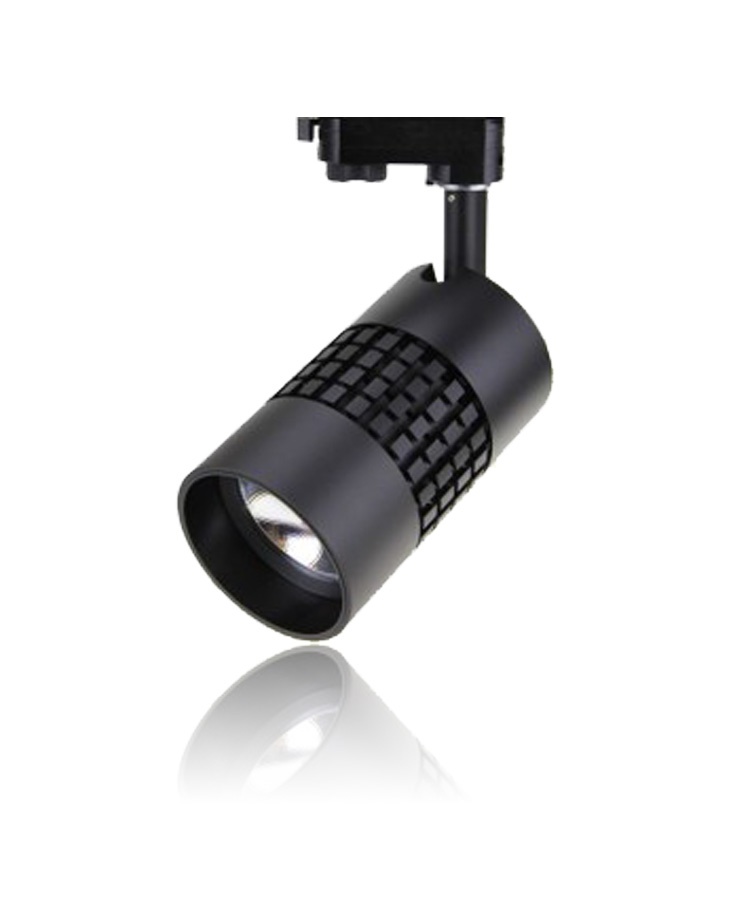

• In white, black or silver
• Adjustable: Continuous 350° rotation and 90° pivot
• Adapters for choice:1/2/3 phase, compatible with Global,Norlux, etc.
• 3-5 years warranty

Application
For replacement of CDM tracklights, metal halide and halogen track spotlights
Ideal for indoor commercial lighting, retail lighting, garment lighting, various shop lighting
Ideal for museums, gallery lighting
Ideal for showroom lighting, exhibition lighting  and other partial lighting

Technical Features
• Input Voltage:  AC200-240V/ AC90-130V
• Power Factor: PF>0.95 Flicker free
• Luminous efficiency: >100lm/W @CRI80 (whole lamp)
• Adjustable: Continuous 350° rotation and 90° pivot
• Beamangle: 10°, 24°, 36°
• Life Span: 50,000 hours
• Track adapter: 1/2/3 phase universal adapter
• Operation Temperature: -15°C~+50°C
• Storage Temperature: -25°C~+55°C

Data sheet

Product Code

Rated Power

Dimension

(mm)

Beamangle

Input
Voltage

LED
Type

Power Factor

Lumen

LM

CRI

ED-TL-15W-D1

15W

Φ70*124*145

10°/25°/38°

AC100-240V

AC90-130V

Citizen

COB LED

PF>0.95

900-1100

Ra>97



LED Light source

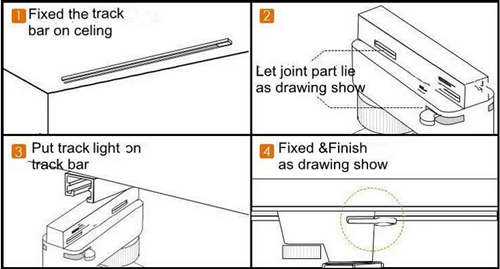

Installation
