Current position : Index > products > F-Series Track Light Wattage: 35W

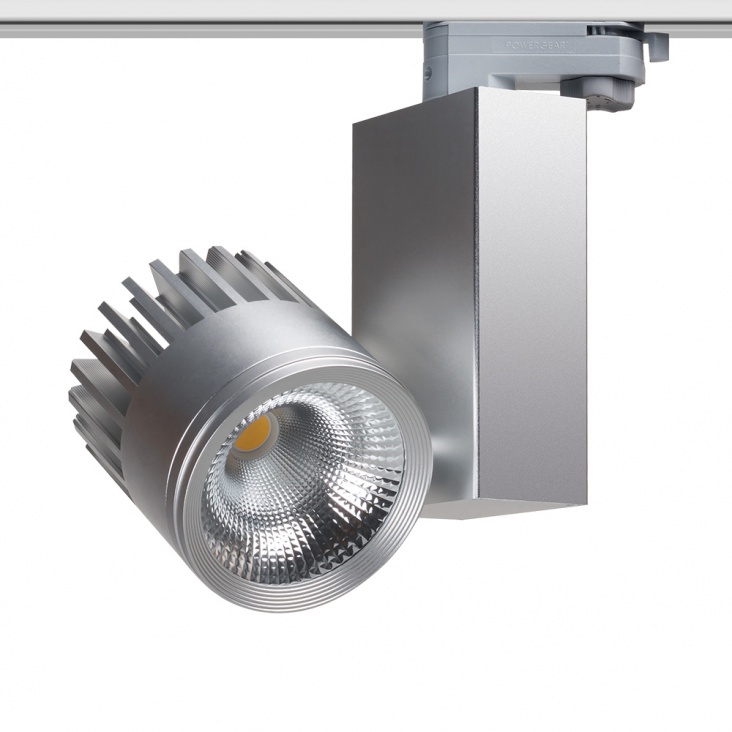

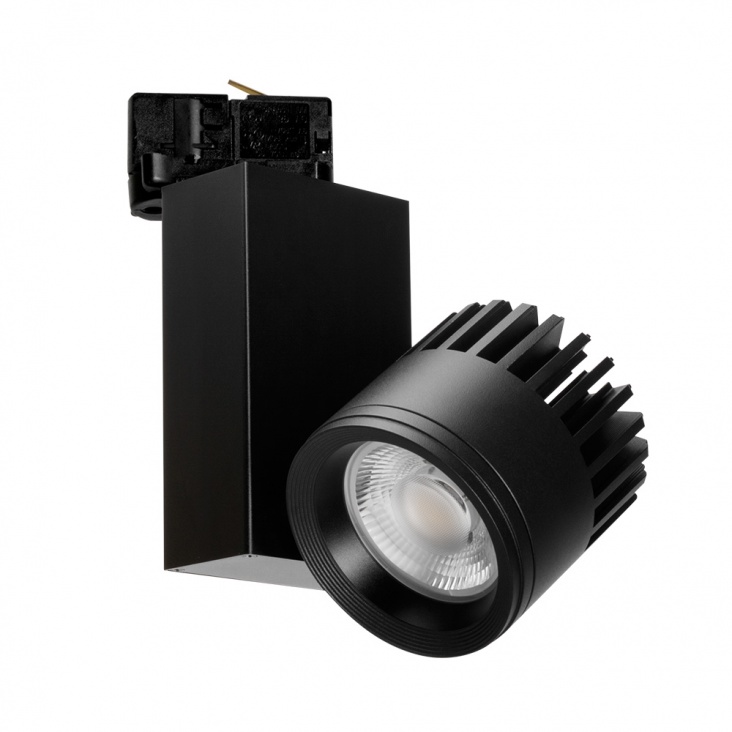

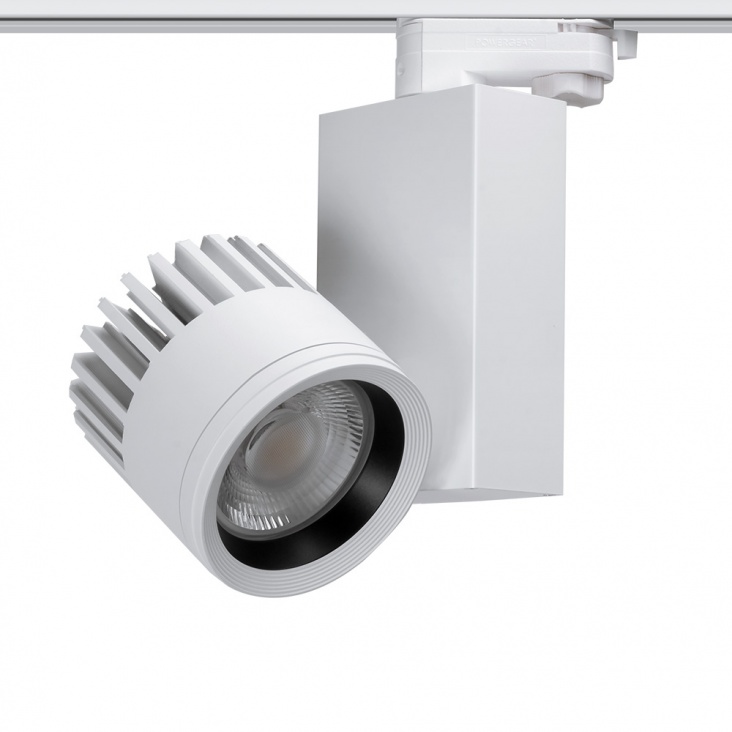

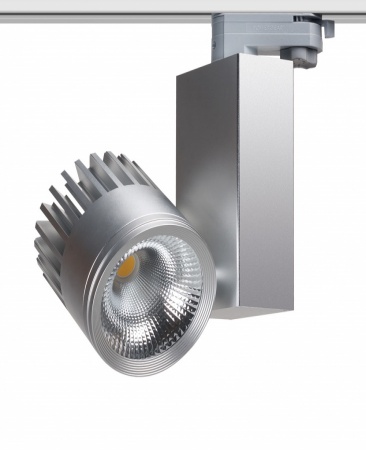

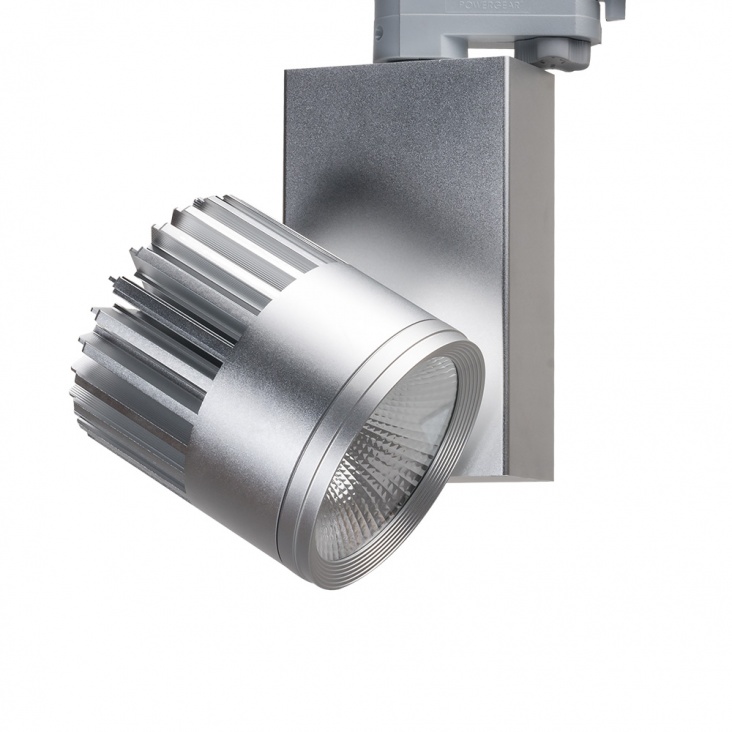

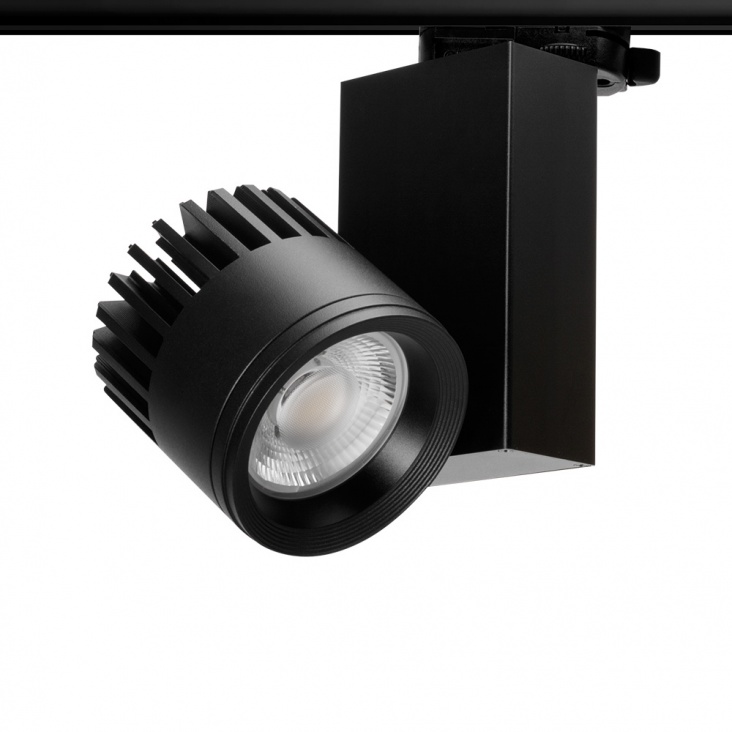

F-Series Track Light
Wattage: 35W

Product information

LED Power: 30W
Lamp Consumption: 33-35W
Dimension: φ100*H221mm
Color of Frame: white/ black/ silver
Warranty :5 Years

Enquiryback

Product details

C led track light Advantages:
♦ High CRI: 97+ (2700K/3000K/4000K)
♦ Good quality driver, flicker-free, PF>0.95
♦ 1 /2 / 3 phase universal track adapter
♦ High luminous efficiency >100lm/W @CRI80
♦ Standard reflector is 10°/ 23°/38° are available.
♦ Wattage: 20W, 25W, 30W, 35W, 40W, 45W, 50W

C led track light Key Features
•  Citizen COB LED with CRI>97
• Lumen/CRI: >100lm/W @CRI80 (whole lamp)
• 6063 brushed aluminum alloy
• In white, black or silver
• Adjustable: Continuous 350° rotation and 90° pivot
• Adapters for choice:1/2/3 phase, compatible with Global,Norlux, etc.
• 3-5 years warranty
• Standard white color housing is RAL9010

C led track light Application
For replacement of CDM tracklights, metal halide and halogen track spotlights
Ideal for indoor commercial lighting, retail lighting, garment lighting, various shop lighting
Ideal for museums, gallery lighting
Ideal for showroom lighting, exhibition lighting  and other partial lighting

C led track light Datasheet

Product Code

Rated Power

Dimension

(mm)

Beamangle

Input
Voltage

LED
Type

Power Factor

Lumen

LM

CRI

ED-TL-35W-C

33-35W

100*221

18°/30°/55°

AC100-240V

AC90-130V

Epistar/Citizen/CREE

COB LED

PF>0.95

3100-3400LM

Ra>97

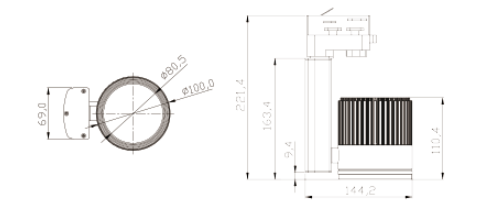

Dimension

IES

Working temperature

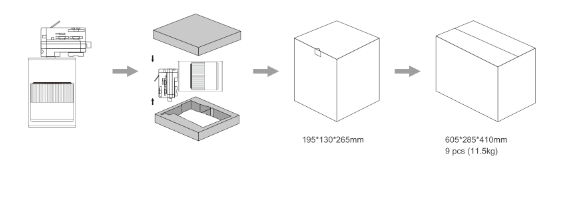

Packing details
