Current position : Index > products > New!F1- Series Track Light Wattage: 35W

New!F1- Series Track Light
Wattage: 35W

Product information

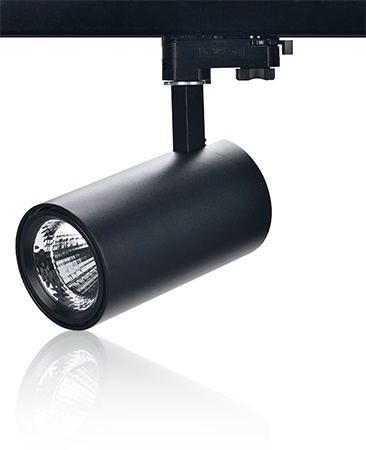

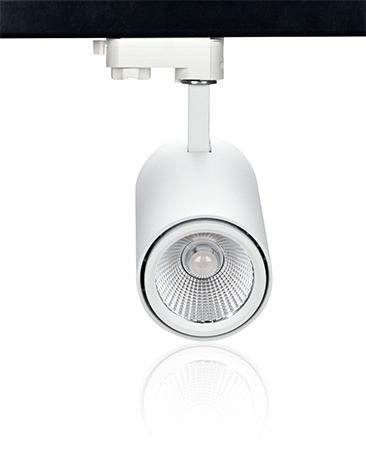

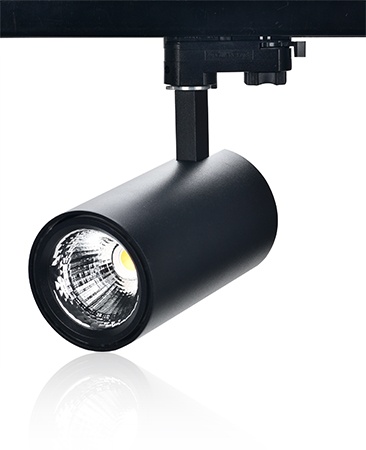

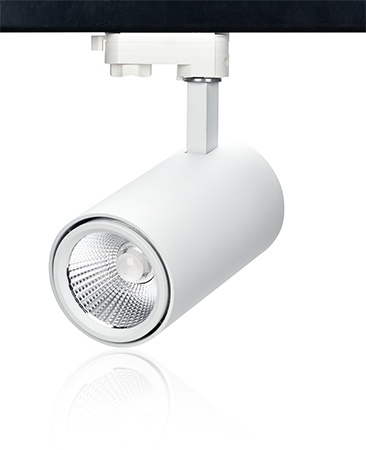

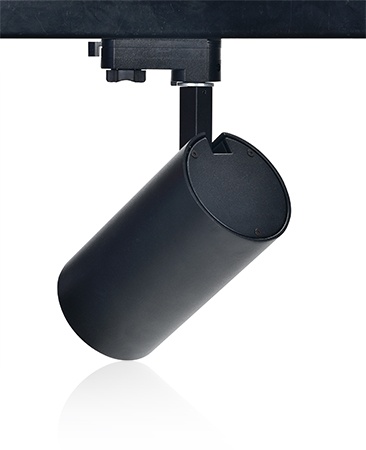

35W LED F1 track light
Rated Power: 35W (
90*165*187mm)
Lumen/CRI: 120-130lm/W @CRI80
Beamangle: 10°/23°/38°/60°
Power Factor:PF>0.97

Enquiryback

Product details

LED Track light Advantages:
♦ High CRI: 97+ (2700K/3000K/4000K)
♦ Good quality driver, flicker-free, PF>0.97
♦ 1 /2 / 3 phase universal track adapter
♦ High luminous efficiency 120-130lm/W @CRI80
♦ Standard reflector is 10°/ 24°/38°/60° are available.
♦ Wattage: 10W,15W,25W,  40W, 50W

LED Track light  Key Features
•  Citizen COB LED with CRI>97
• Lumen/CRI: 120-130lm/W @CRI80 (whole lamp)
• 6063 brushed aluminum alloy
• In white, black or silver
• Adjustable: Continuous 350° rotation and 90° pivot
• Adapters for choice:1/2/3 phase, compatible with Global,Norlux, etc.
• 3-5 years warranty
• Standard white color housing is RAL9016

LED Track light  Application
For replacement of CDM tracklights, metal halide and halogen track spotlights
Ideal for indoor commercial lighting, retail lighting, garment lighting, various shop lighting
Ideal for museums, gallery lighting
Ideal for showroom lighting, exhibition lighting  and other partial lighting

LED Track light  Datasheet

Body materials

6063 brused aluminum

track adapter

Global/Powergear

Phase

3phase/1phase

Housing color

Black/White/Silver

LED brand

Citizen/CREE

LED efficiency

90-120lm/W

Color&Kelvin

2700/3000K/4000K/5000K

CRI

80+/90+/97+

Macadam

within 3 step

Beam angle

10°/20°/30°/60°  (lens),

LED driver

Tridonic/Philips/HEP

12°/23°/36°/60°(Reflectors)

Voltage

AC200-240V/AC100-240V

Power factory

>0.95

THD

<15

Dimmable

DALI/TRIAC/0/1-10V/ZigBee/RF/DMX

LED Wattage

30W

Lamp wattage

35W

Working Temp.

-20-45degree

Light span

50000hours


Product Code

Rated Power

Dimension

(mm)

Beamangle

Input
Voltage

LED
Type

Power Factor

Lumen

LM

CRI

ED-TL-35W-F1

35W


90*165*187


10°/23°/38°/60°

AC100-240V

AC90-130V

Citizen 1206
COB LED

PF>0.97

3500-4000

Ra>97


Dimension




Spectrum Distribution


Packaging details

Model

ED-TL-F1

Pcs/Carton

12

Inner Box size(mm)

95*95*285mm

Carton Sizemm)

295*390*295mm

Weight(kg)

13KG


Installation manual


Remove manual
