Current position : Index > products > D1- Series Track Light Wattage: 40W 45W

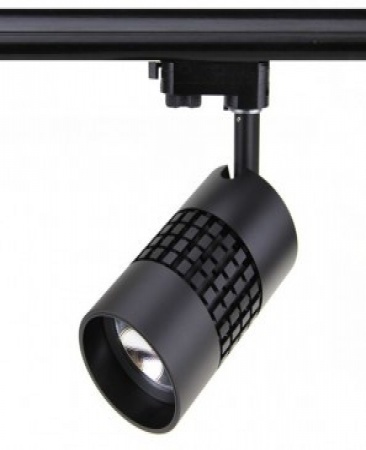

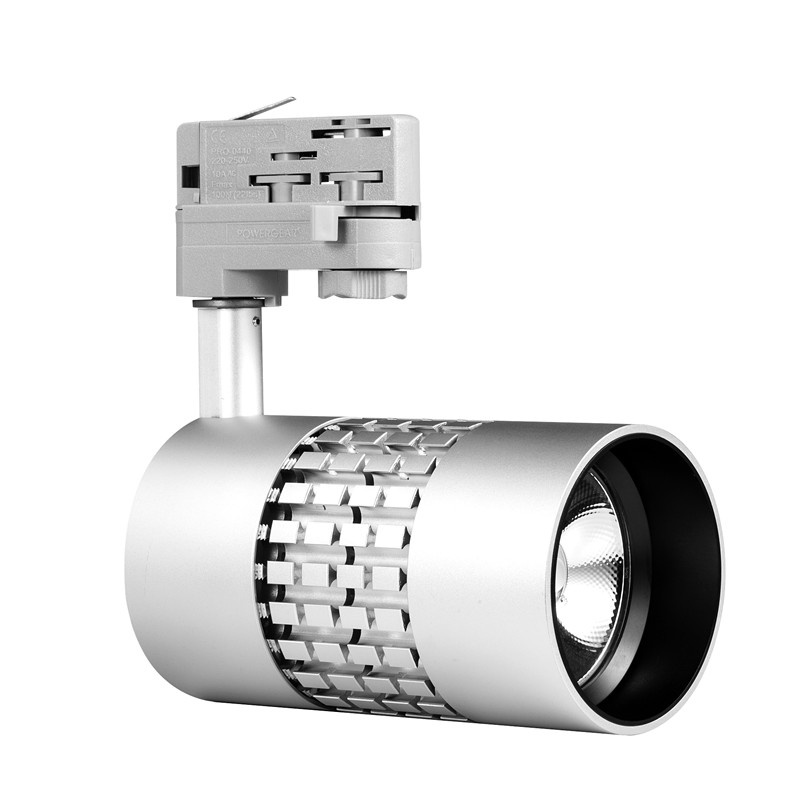

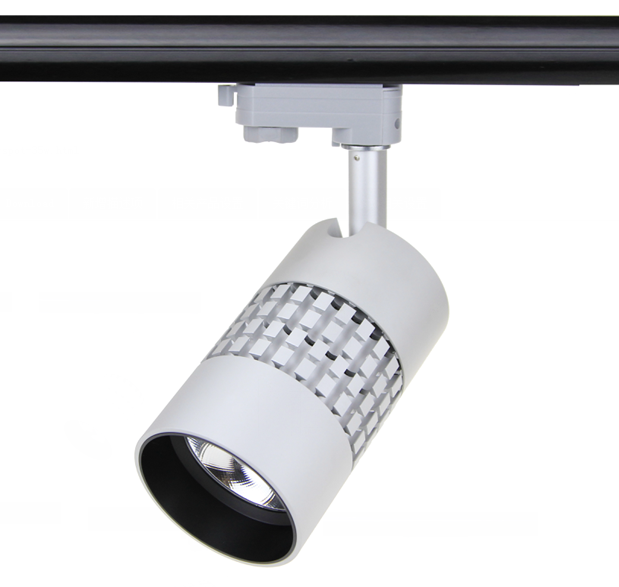

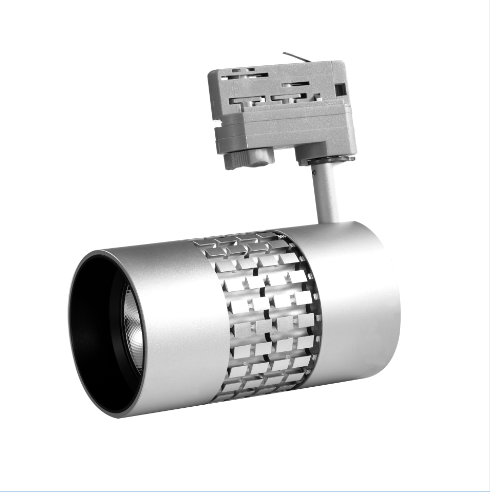

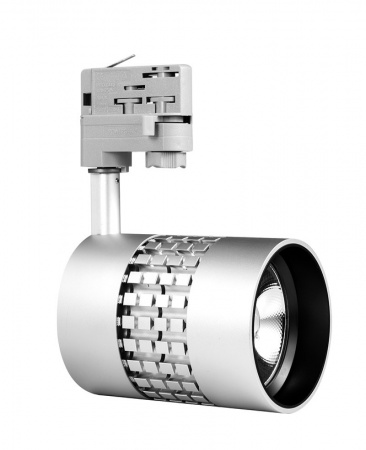

D1- Series Track Light
Wattage: 40W 45W

Product information

Size:Φ110*195*189
Lumen/CRI:>100lm/W @CRI80
Beamangle: 10°, 24°, 36°
Power Factor: PF>0.95 Flicker free

Enquiryback

Product details

Advantages:
♦ High CRI: 97+ (2700K/3000K/4000K)
♦ Good quality driver, flicker-free, PF>0.95
♦ 1 /2 / 3 phase universal track adapter
♦ High luminous efficiency >100lm/W @CRI80
♦ Standard reflector is 10°/ 23°/38° are available.
♦ Wattage: 15W, 20W, 30W,35W,40W

Key Features
•  Citizen COB LED with CRI>97
• Lumen/CRI: >100lm/W @CRI80 (whole lamp)
• 6063 brushed aluminum alloy
• In white, black or silver
• Adjustable: Continuous 350° rotation and 90° pivot
• Adapters for choice:1/2/3 phase, compatible with Global,Norlux, etc.
• 3-5 years warranty
• Standard white color housing is RAL9010

Application
For replacement of CDM tracklights, metal halide and halogen track spotlights
Ideal for indoor commercial lighting, retail lighting, garment lighting, various shop lighting
Ideal for museums, gallery lighting
Ideal for showroom lighting, exhibition lighting  and other partial lighting

Data sheet

Product Code

Rated Power

Dimension

(mm)

Beamangle

Input
Voltage

LED
Type

Power Factor

Lumen

LM

CRI

ED-TL-40W-D1

40W

110*195*189

10°/24°/36°

AC100-240V

AC90-130V

Citizen

COB LED

PF>0.95

2800-3000

Ra>97

ED-TL-45W-D1

45W

110*195*189

10°/24°/36°

AC100-240V

AC90-130V

Citizen

COB LED

PF>0.95

3200-3500

Ra>97

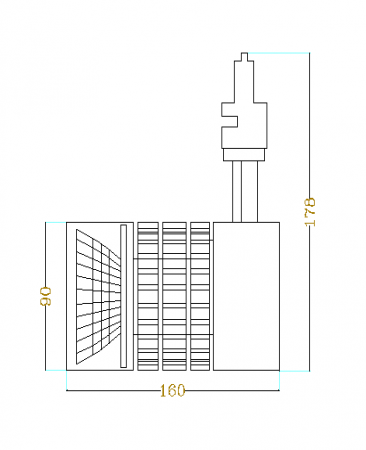

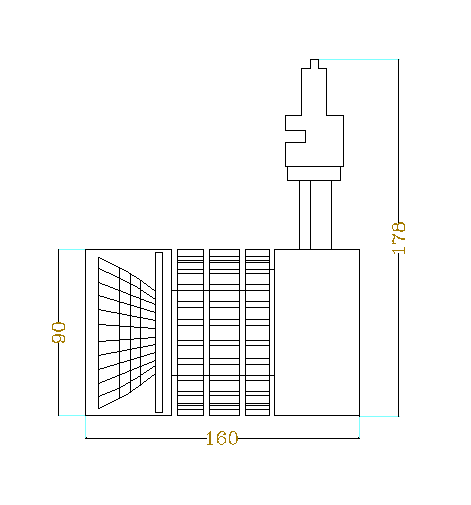

Dimension

LED Source

Light Distribution Curves

AAI FIGURES


Installation
