Current position : Index > products > D1 -Series Track Light Wattage: 20W 30W 35W

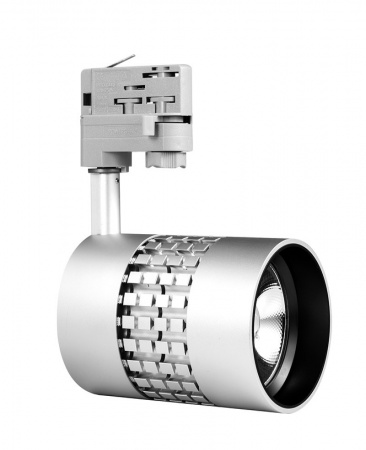

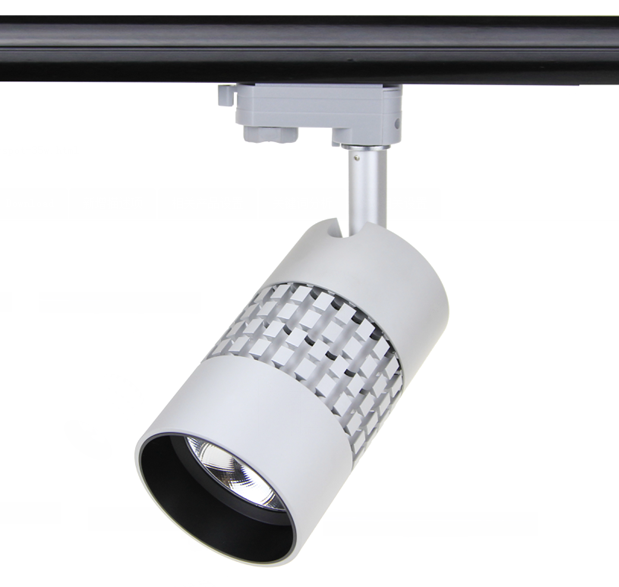

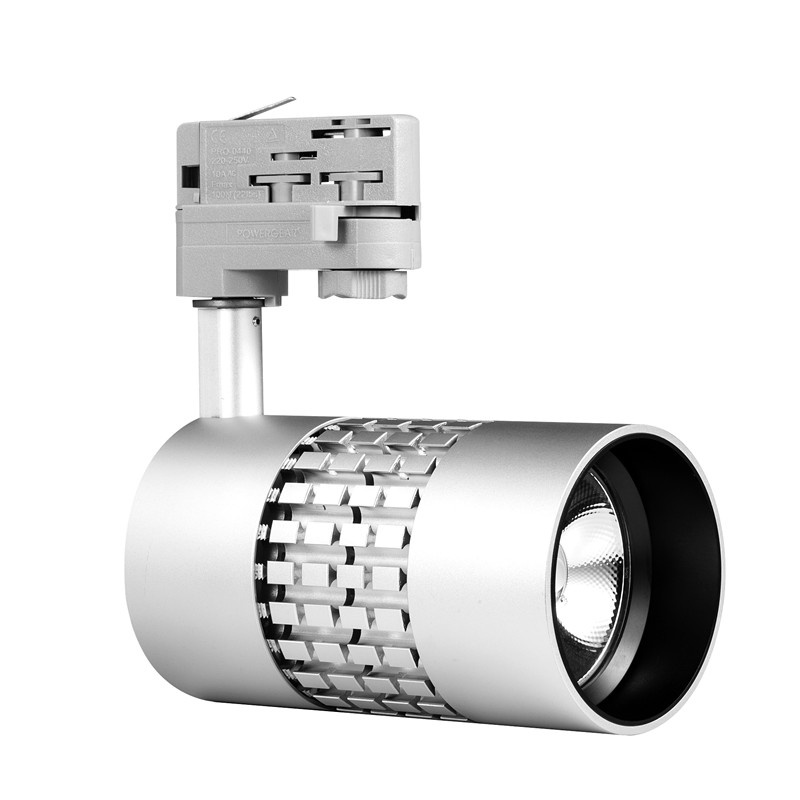

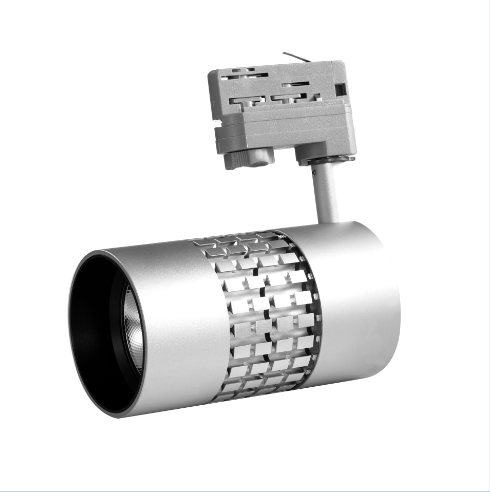

D1 -Series Track Light
Wattage: 20W 30W 35W

Product information

Size:Φ90*160*178
Lumen/CRI:>100lm/W @CRI80
Beamangle: 10°, 24°, 36°
Power Factor: PF>0.95 Flicker free

Enquiryback

Product details

 Advantages:
♦ High CRI: 97+ (2700K/3000K/4000K)
♦ Good quality driver, flicker-free, PF>0.95
♦ 1 /2 / 3 phase universal track adapter
♦ High luminous efficiency >100lm/W @CRI80
♦ Standard reflector is 10°/ 23°/38° are available.
♦ Wattage: 15W, 40W, 45W

Key Features
• Citizen COB LED with CRI>97
• Lumen/CRI: >100lm/W @CRI80 (whole lamp)
• 6063 brushed aluminum alloy

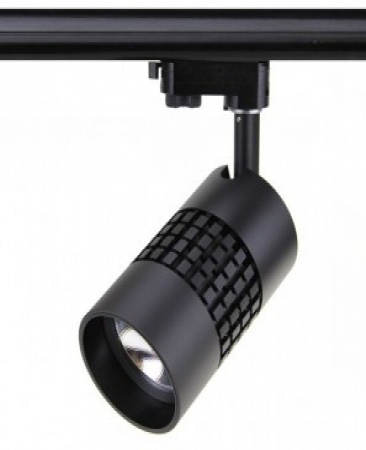

• In white, black or silver
• Adjustable: Continuous 350° rotation and 90° pivot
• Adapters for choice:1/2/3 phase, compatible with Global,Norlux, etc.
• 3-5 years warranty
• Standard white color housing is RAL9010

Application
For replacement of CDM tracklights, metal halide and halogen track spotlights
Ideal for indoor commercial lighting, retail lighting, garment lighting, various shop lighting
Ideal for museums, gallery lighting
Ideal for showroom lighting, exhibition lighting  and other partial lighting

Datasheet

Product Code

Rated Power

Dimension

(mm)

Beamangle

Input
Voltage

LED
Type

Power Factor

Lumen

LM

CRI

ED-TL-20W-D1

20W

Φ90*160*178

10°/23°/38°

AC100-240V

AC90-130V

Citizen

COB LED

PF>0.95

1500-1700

Ra>97

ED-TL-30W-D1

30W

Φ90*160*178

10°/23°/38°

AC100-240V

AC90-130V

Citizen

COB LED

PF>0.95

2200-2400

Ra>97

ED-TL-35W-D1

35W

Φ90*160*178

10°/23°/38°

AC100-240V

AC90-130V

Citizen

COB LED

PF>0.95

2500-2800

Ra>97


Dimension

LED Source

Light Distribution Curves

            20W CRI97 3000K                                                     30W CRI97 3000K

AAI FIGURES

                                20W CRI97 3000K                                                            30W CRI97 3000K

Installation
