Current position : Index > products > F-Series Track Light Wattage: 25W

F-Series Track Light
Wattage: 25W

Product information

F 25W Track light
Size:Φ95xL165mm
Lumen/CRI:>100lm/W @CRI80
Beamangle: 10°, 20°, 30°
Power Factor:PF>0.95 Flicker free
Input Voltage:  AC200-240V/ AC90-130V

Enquiryback

Product details

Advantages:
♦ High CRI: 97+ (2700K/3000K/4000K)
♦ Good quality driver, flicker-free, PF>0.95
♦ 1 /2 / 3 phase universal track adapter
♦ High luminous efficiency>100lm/W @CRI80
♦ Wattage: 10W 15W, 20W, 30W, 35W
Inquiry Now

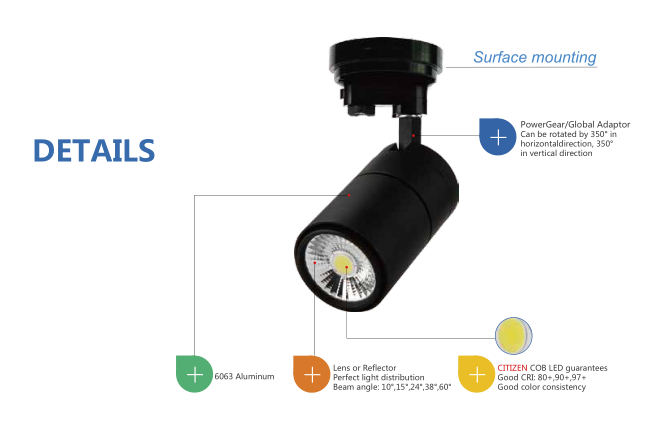

Key Features
•Size: Φ95xL165mm
•  Citizen COB LED with CRI>97
• Lumen/CRI: >100lm/W @CRI80 (whole lamp)
•6063 brushed aluminum alloy
• In white, black or silver
• Adjustable: Continuous 350° rotation and 90° pivot
• Adapters for choice:1/2/3 phase, compatible with Global,Norlux, etc.
• 3-5 years warranty

Application
For replacement of CDM tracklights, metal halide and halogen track spotlights
Ideal for indoor commercial lighting, retail lighting, garment lighting, various shop lighting
Ideal for museums, gallery lighting
Ideal for showroom lighting, exhibition lighting  and other partial lighting

Technical Features
• Input Voltage:  AC200-240V/ AC90-130V
• Power Factor: PF>0.95 Flicker free
• Luminous efficiency: >100lm/W @CRI80 (whole lamp)
• Adjustable: Continuous 350° rotation and 90° pivot
• Beamangle: 10°, 20°, 30°
• Life Span: 50,000 hours
• Track adapter: 1/2/3 phase universal adapter
• Operation Temperature: -15°C~+50°C
• Storage Temperature: -25°C~+55°C

Data sheet

Product Code

Rated Power

Dimension

(mm)

Beamangle

Input
Voltage

LED
Type

Power Factor

Lumen

LM

CRI

ED-TL-25W-F

25W

95*165*165

10°/20°/30°

AC100-240V

Version4 Citizen 1205 COB LED

PF>0.95

1800-2100

Ra>97

ED-TL-30W-F

30W

95*165*165

10°/20°/30°

AC100-240V

Version4 Citizen 1206 COB LED

PF>0.95

2200-2500

Ra>97

ED-TL-35W-F

35W

95*165*165

10°/20°/30°

AC100-240V

Version4 Citizen 1206 COB LED

PF>0.95

2700-3000

Ra>97
