Current position : Index > products > New!F1-Series Track Light Wattage: 25W

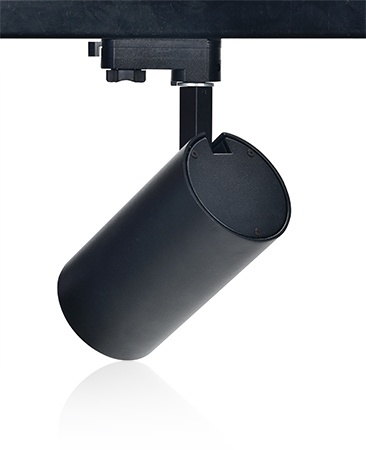

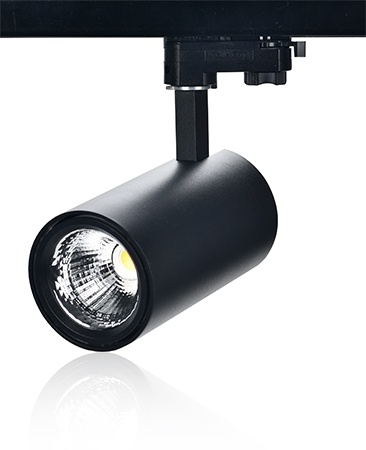

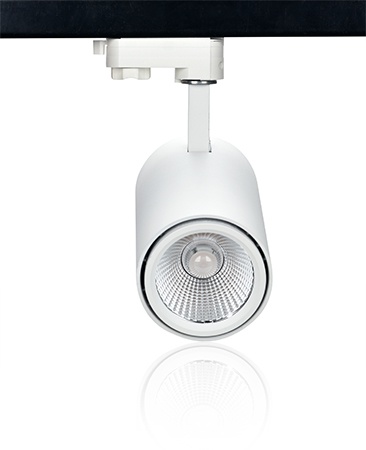

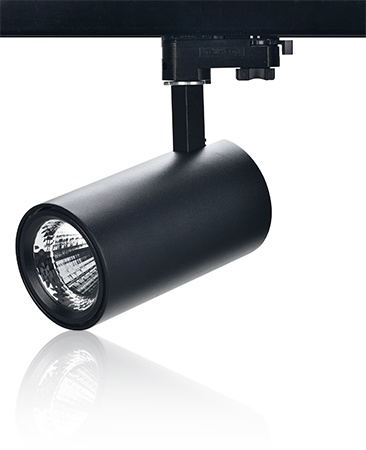

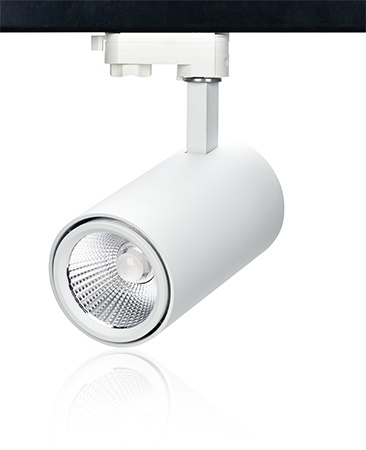

New!F1-Series Track Light
Wattage: 25W

Product information

25W Track light
Rated Power: 25W （90*165*187mm）
Lumen/CRI: 120-130lm/W @CRI80
Beamangle: 10°/23°/38°/60°
Power Factor:PF>0.97

Enquiry back

Product details

LED Track light Advantages:
♦ High CRI: 97+ (2700K/3000K/4000K)
♦ Good quality driver, flicker-free, PF>0.97
♦ 1 /2 / 3 phase universal track adapter
♦ High luminous efficiency 120-130lm/W @CRI80
♦ Standard reflector is 10°/ 24°/38°/60° are available.
♦ Wattage: 10W,15W, 35W, 40W, 50W

LED Track light Key Features
• Citizen COB LED with CRI>97
• Lumen/CRI: 120-130lm/W @CRI80 (whole lamp)
• 6063 brushed aluminum alloy
• In white, black or silver
• Adjustable: Continuous 350° rotation and 90° pivot
• Adapters for choice:1/2/3 phase, compatible with Global,Norlux, etc.
• 3-5 years warranty
• Standard white color housing is RAL9016

LED Track light Application
For replacement of CDM tracklights, metal halide and halogen track spotlights
Ideal for indoor commercial lighting, retail lighting, garment lighting, various shop lighting
Ideal for museums, gallery lighting
Ideal for showroom lighting, exhibition lighting and other partial lighting

LED Track light Datasheet

Body materials	6063 brused aluminum	track adapter	Global/Powergear
Phase	3phase/1phase	Housing color	Black/White/Silver
LED brand	Citizen/CREE	LED efficiency	90-120lm/W
Color&Kelvin	2700/3000K/4000K/5000K	CRI	80+/90+/97+
Macadam	within 3 step	Beam angle	10°/20°/30°/60° (lens),
LED driver	Tridonic/Philips/HEP	Beam angle	12°/23°/36°/60°(Reflectors)
Voltage	AC200-240V/AC100-240V	Power factory	>0.95
THD	<15	Dimmable	DALI/TRIAC/0/1-10V/ZigBee/RF/DMX
LED Wattage	30W	Lamp wattage	35W
Working Temp.	-20-45degree	Light span	50000hours

Product Code

Rated Power

Dimension

(mm)

Beamangle

Input
Voltage

LED
Type

Power Factor

Lumen

CRI

ED-TL-25W-F1

25W

90*165*187

10°/23°/38°/60°

AC100-240V

AC90-130V

Citizen 1206
COB LED

PF>0.97

2500-2800

Ra>97

Dimension

Spectrum Distribution

Packaging details

Model	ED-TL-F1
Pcs/Carton	12
Inner Box size(mm)	9595285mm
Carton Size（mm)	295390295mm
Weight(kg)	13KG

Installation manual

Remove manual
