D led track light Advantages:
♦ High CRI: 97+ (2700K/3000K/4000K)
♦ Good quality driver, flicker-free, PF>0.95
♦ 1 /2 / 3 phase universal track adapter
♦ High luminous efficiency >100lm/W @CRI80
♦ Standard reflector is 10°/ 23°/38° are available.
♦ Wattage: 20W, 25W, 30W, 35W, 40W, 45W, 50W

D led track light Key Features
•  Citizen COB LED with CRI>97
• Lumen/CRI: >100lm/W @CRI80 (whole lamp)
• 6063 brushed aluminum alloy
• In white, black or silver
• Adjustable: Continuous 350° rotation and 90° pivot
• Adapters for choice:1/2/3 phase, compatible with Global,Norlux, etc.
• 3-5 years warranty
• Standard white color housing is RAL9010

D led track light Application
For replacement of CDM tracklights, metal halide and halogen track spotlights
Ideal for indoor commercial lighting, retail lighting, garment lighting, various shop lighting
Ideal for museums, gallery lighting
Ideal for showroom lighting, exhibition lighting  and other partial lighting

D led track light Datasheet

Product Code	Rated Power	Dimension (mm)	Beamangle	Input Voltage	LED Type	Power Factor	Lumen LM	CRI
ED-TL-15W-D	15W	70*129	10°/23°/38°	AC100-240V AC90-130V	Citizen 1202 COB LED	PF>0.95	1300-1500	Ra>97

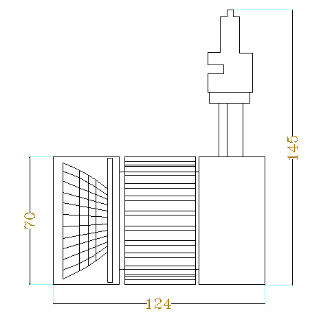

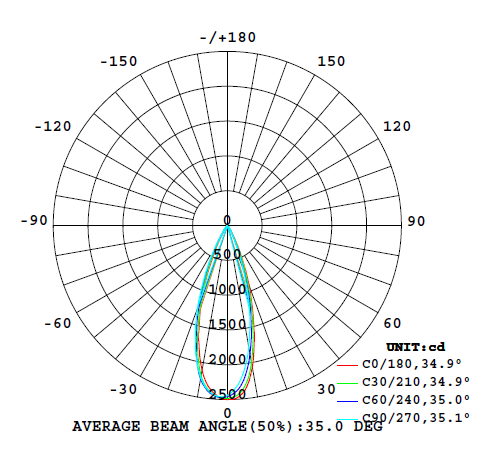

Dimension                                                              LIGHT DISTRIBUTION CURVES (

  15W  CRI97  3000K )

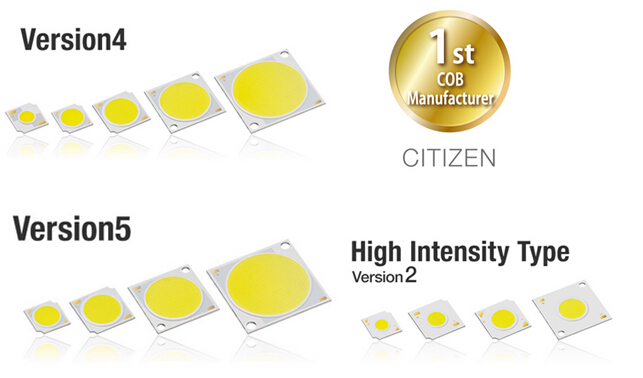

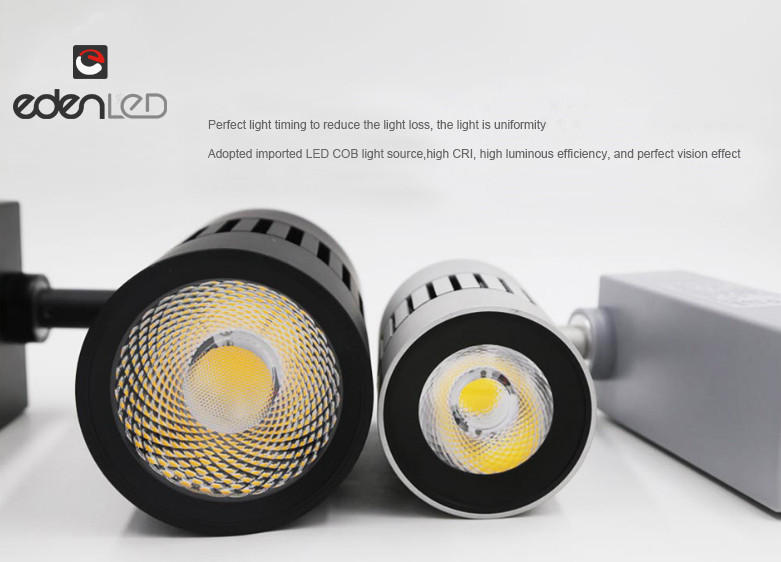

LED Source

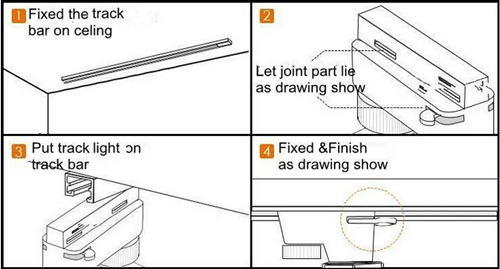

Installation

Details

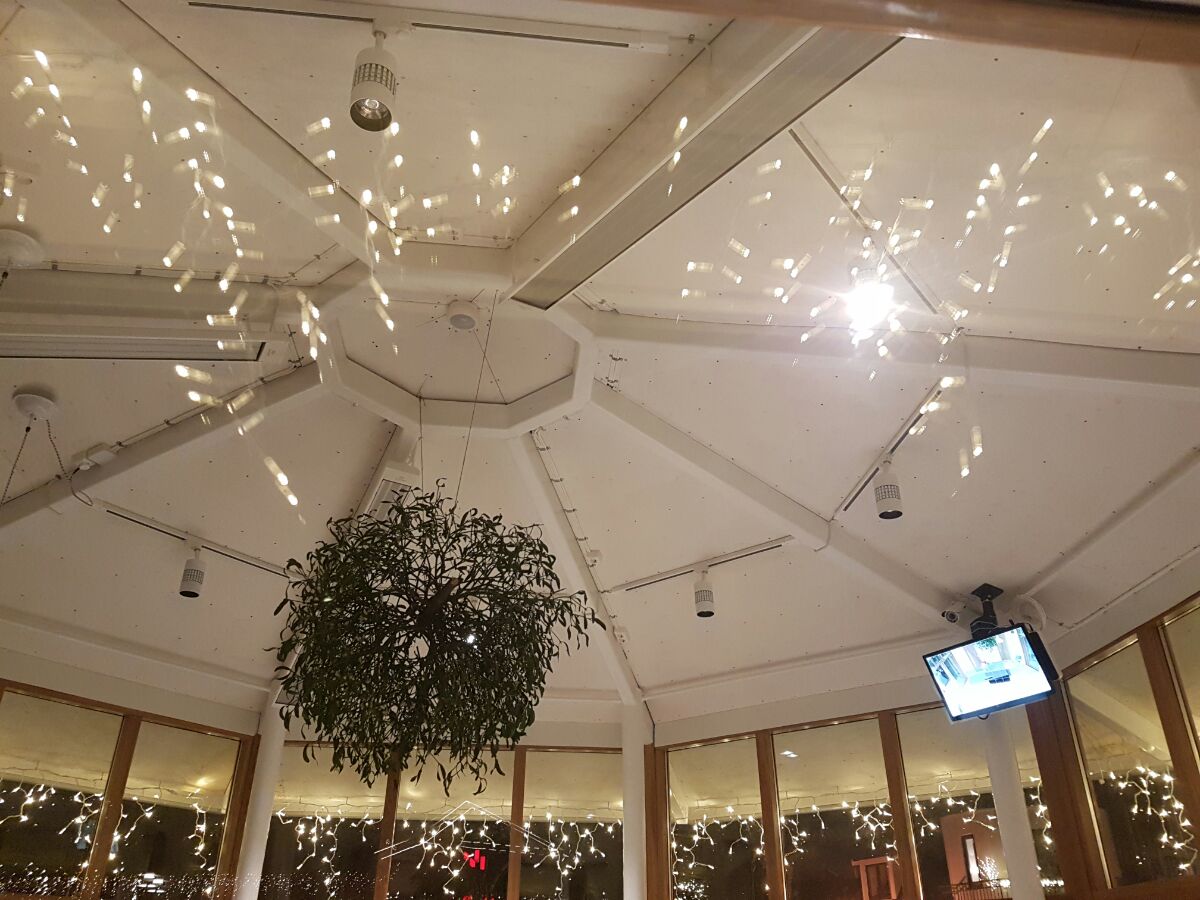

Application
