Current position : Index > products > D9 6inch 15-25W

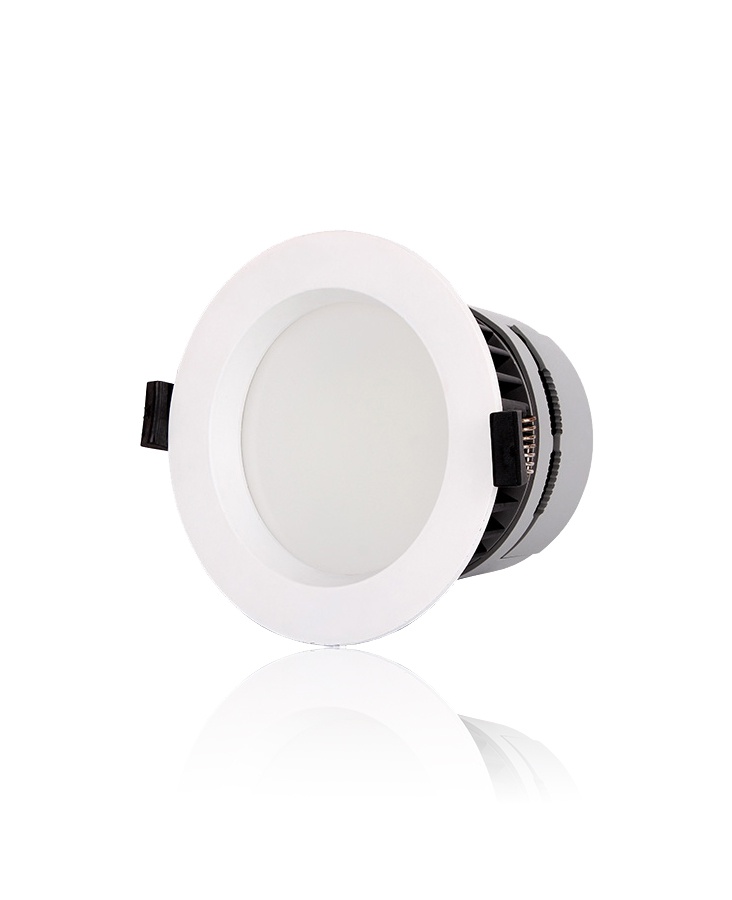

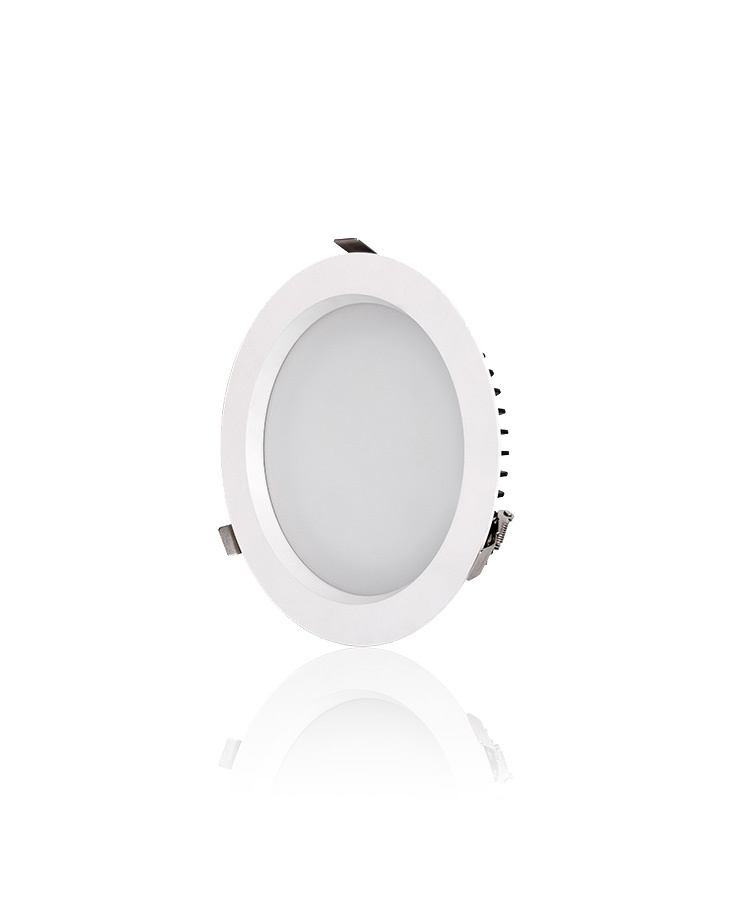

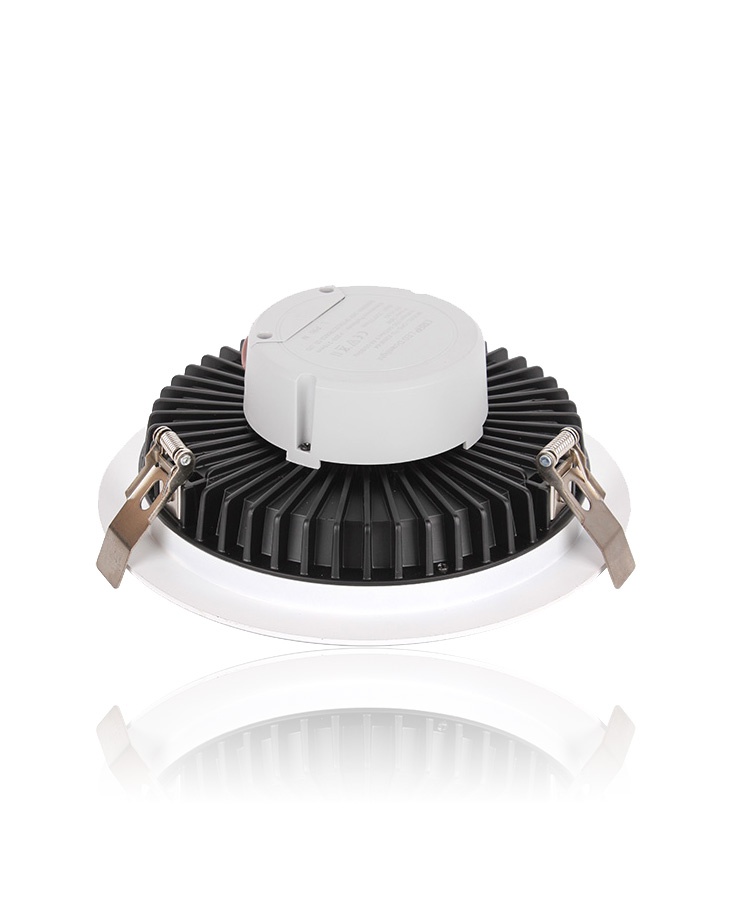

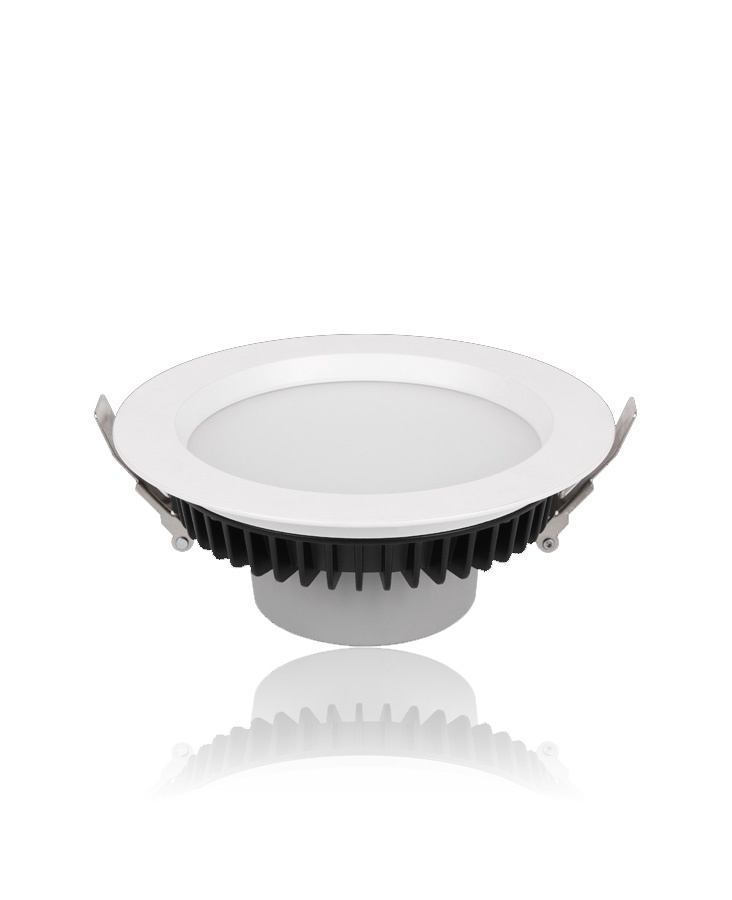

D9 6inch 15-25W

Product information

Input Voltage:  AC100-240V 50/60Hz
Operation Voltage: DC36-42V
Power Factor: 0.75-0.9
Lumen maintenance @6000h :>80%
IP Rating: IP20

Enquiryback

Product details

Key Features
• SMD2835 as light source
• CB Approved driver
• In-house design
• Easy Recessed installation
• ENEC,CE,RoHS,CB
• 3 Years warranty

Construction Features
• Die-case housing as heatsink
• High transmission PC cover
• Various of installation clip

Technical Features
• Input Voltage:  AC100-240V 50/60Hz
• Operation Voltage: DC36-42V
• Power Factor: 0.75-0.9
• Lumen maintenance @6000h :>80%
• IP Rating: IP20
• Life Span: 50,000 hours
• Operation Temperature: -15°C~+50°C
• Storage Temperature: -25°C~+55°C

Datasheet

Product Name

Product Code

Rated Power

Product Size

Cut-hole

Input
Voltage

LED
Type

Power Factor

Luminous Flux (LM)

Lumen Efficacy(LM/W)

CRI

6/15W

ED-R6A15-D9

15W

190*77mm

D154mm

AC100-240V

SMD2835

PF>0.9

1200-1300lm

85

Ra>80

6/20W

ED-R6A20-D9

20W

190*77mm

D154mm

AC100-240V

SMD2835

PF>0.9

1500-1700lm

85

Ra>80

6/25W

ED-R6A25-D9

25W

190*77mm

D154mm

AC100-240V

SMD2835

PF>0.9

1850-2100lm

85

Ra>80
