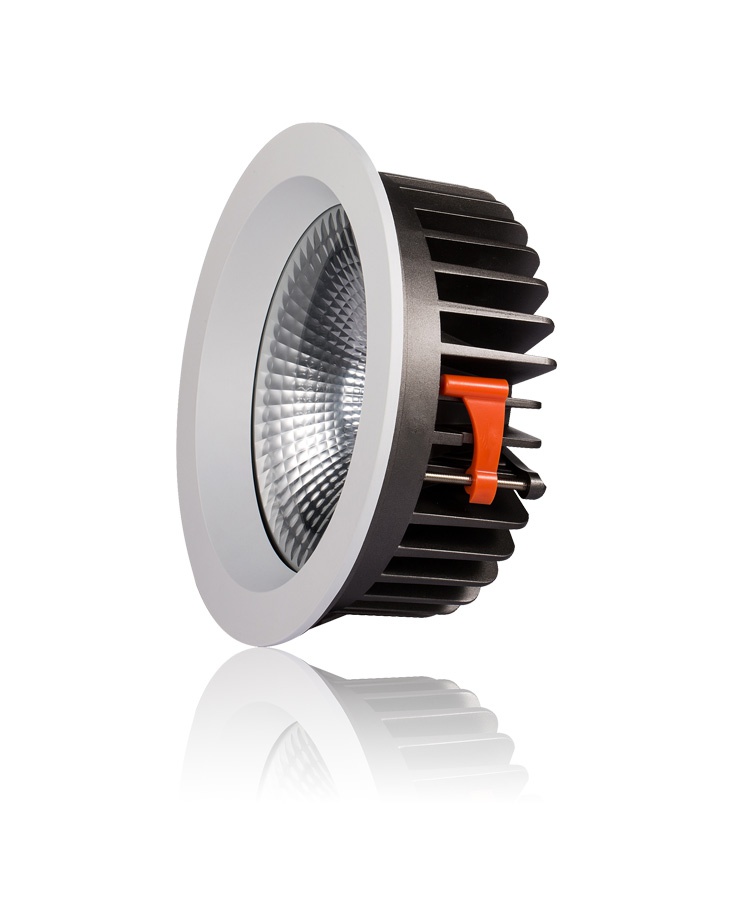

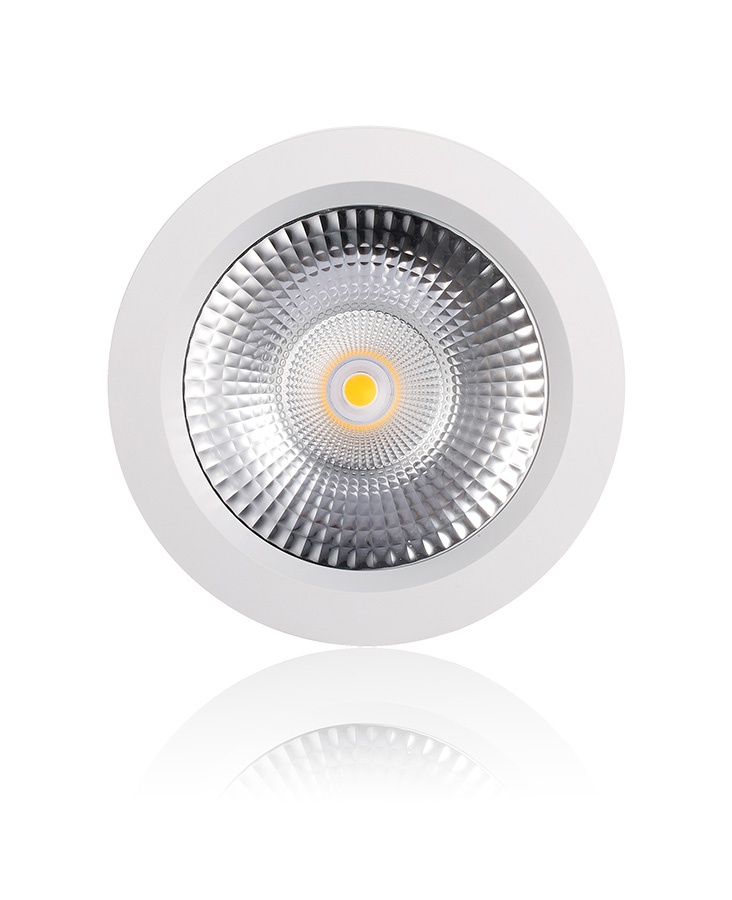

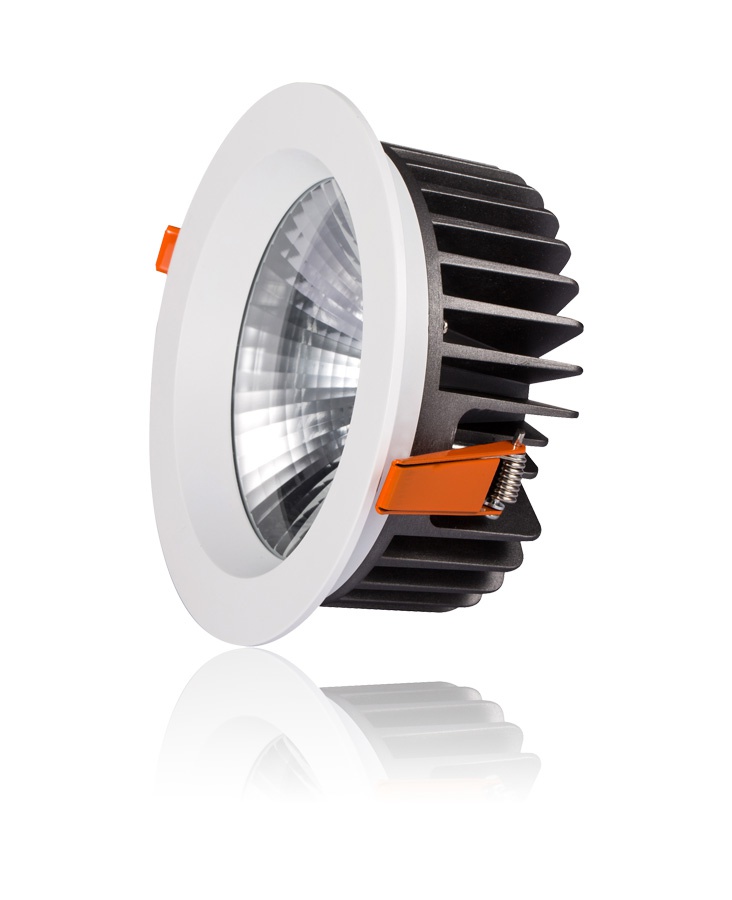

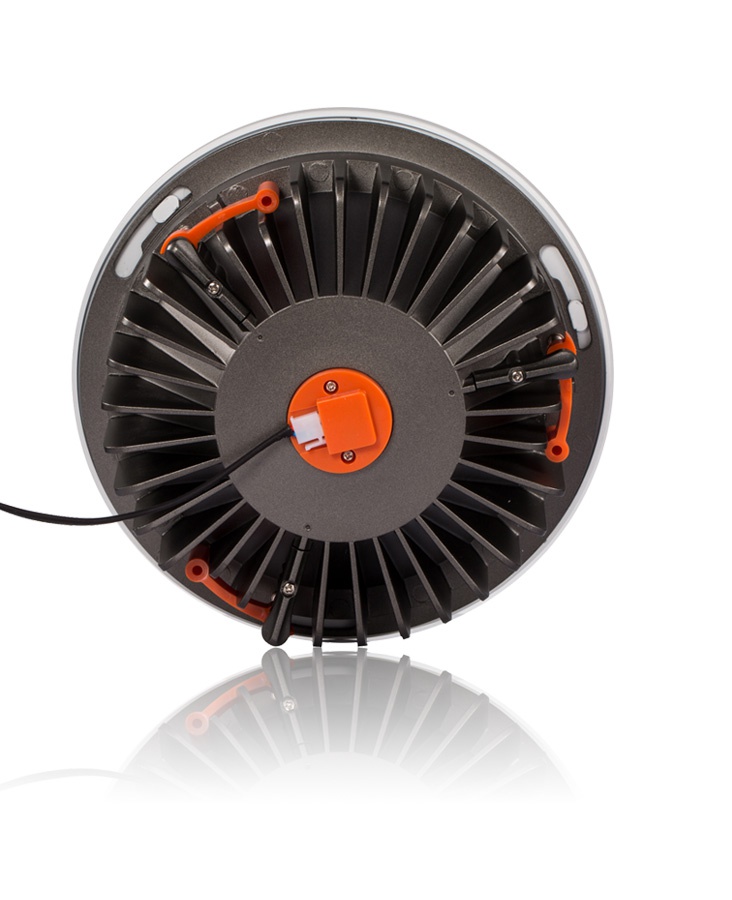

X5 3inch 10-15W Downlight

Product information

Input Voltage:  AC100-240V 50/60Hz
Operation Voltage: DC36-42V
Power Factor: PF>0.95 Flicker free
Operation Temperature: -15°C~+50°C
Storage Temperature: -25°C~+55°C

Enquiryback

Product details

Key Features
• Dimension:∮110*H53mm  Cut-hole:∮90-100mm
• CREE&Citizen as light source
• Lumen/CRI: 110-120lm/w, CRI>80 ,CRI >97 ,
•125LM/W whole LED lighting
•Housing material: die-casting aluminum ADC12
•Driver: Isolated Driver  PF>0.95 PF>80%
•CE,RoHS,SAA
• 3-5 Years warranty

Construction Features
• Acrylic material, Light transmittance>90%
•With stronger heat-sink and higher lumen out put. Very comfortable and uniform light
• High lumen output powered by high performance Cree&Citizen with consistent color temperature
• Replace CFL Downlight and metal halide Down Light perfectly, UGR<19
•IP44 protection grade guarantee system to be in moisture environment and inspect proof
•Complete kit with DALI, Triac dimmable or 0-10V dimmable driver or Zigbee system
• Impressive 50000 hours system lifetime, 3-5 year replacement warranty

Technical Features
• Input Voltage:  AC100-240V 50/60Hz
•Operation Voltage: DC36-42V
• Power Factor: PF>0.95 Flicker free
• Operation Temperature: -15°C~+50°C
• Storage Temperature: -25°C~+55°C

Datasheet

Product name

Product Code

Rated Power

Dimension

(mm)

Cut-hole

(mm)

Input
Voltage

LED
Type

Beam

angle

Power Factor

Lumen/w

CRI

3/10W

ED-R3A10-X5

10W

110*H53

90-100

AC100-240V

CREE/Citizen

Epistar

60

PF>0.95

110-120

Ra>80

3/15W

ED-R3A15-X5

15W

110*H53

90-100

AC100-240V

CREE/Citizen

Epistar

60

PF>0.95

110-120

Ra>80
