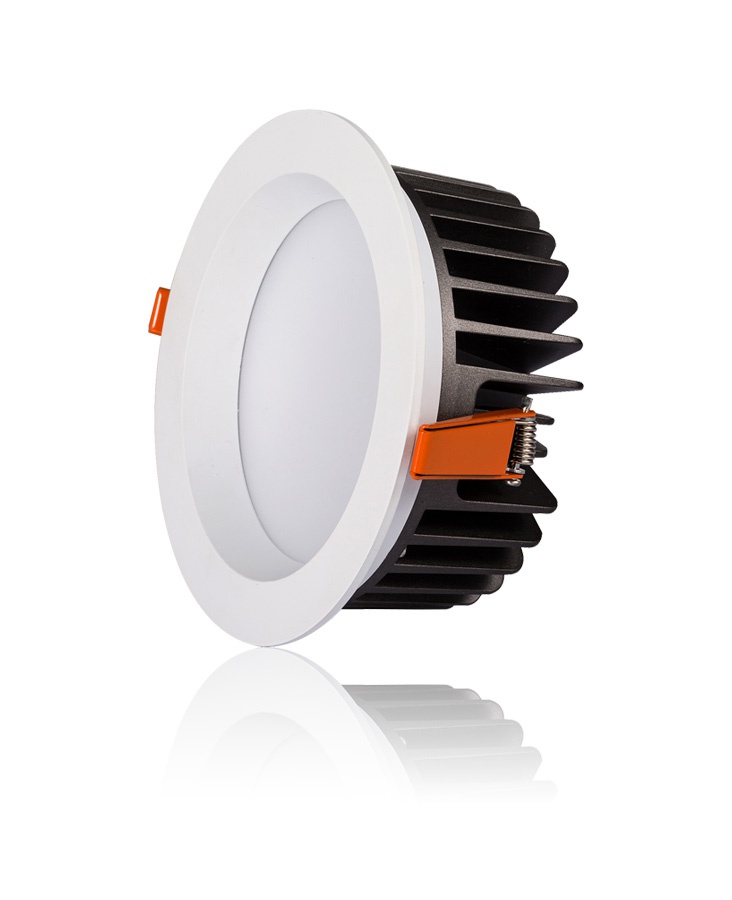

X6 8inch 30-60W

Product information

Input Voltage:  AC100-240V 50/60Hz
Operation Voltage: DC36-42V
Power Factor: PF>0.95 Flicker free
Operation Temperature: -15°C~+50°C
Storage Temperature: -25°C~+55°C

Enquiryback

Product details

Key Features
• Dimension: ∮230*H99mm  Cut hole: ∮200-220mm
• SMD LED as light source (Epistar or Samsung)
• Lumen/CRI: 130lm/w @CRI80/90
• Housing material: die-casting aluminum
• Driver: Isolated Driver  PF>0.95 PF>80%
• CE,RoHS,SAA
• IP44
• 3-5 Years warranty

Construction Features
• Acrylic material, Light transmittance>90%
• With stronger heat-sink and higher lumen out put. Very comfortable and uniform light
• Adopt Samsung/Epistar 2835 with high LED lumen output up to 130lm/w @CRI80+.
• Replace CFL Downlight and metal halide Down Light perfectly, UGR<19
• Complete kit with DALI, Triac dimmable or 0-10V dimmable driver or Zigbee system

Technical Features
• Input Voltage:  AC100-240V 50/60Hz
• Operation Voltage: DC36-42V
• Power Factor: PF>0.95 Flicker free
• Operation Temperature: -15°C~+50°C
• Storage Temperature: -25°C~+55°C

Datasheet

Product name

Product Code

Rated Power

Dimension

(mm)

Cut-hole

(mm)

Input
Voltage

LED
Type

Beam

angle

Power Factor

Lumen/w

CRI

8/30W

EDR8A30-X6

30W

230*H99

200-220

AC100-240V

CREE/Citizen

Epistar

60

PF>0.95

100-120

Ra>80

8/40W

ED-R8A40-X6

40W

230*H99

200-220

AC100-240V

CREE/Citizen

Epistar

60

PF>0.95

100-120

Ra>80

8/60W

ED-R8A60-X6

60W

230*H99

200-220

AC100-240V

CREE/Citizen

Epistar

60

PF>0.95

90-110

Ra>80
