Current position : Index > products > D9 3inch 10-12W

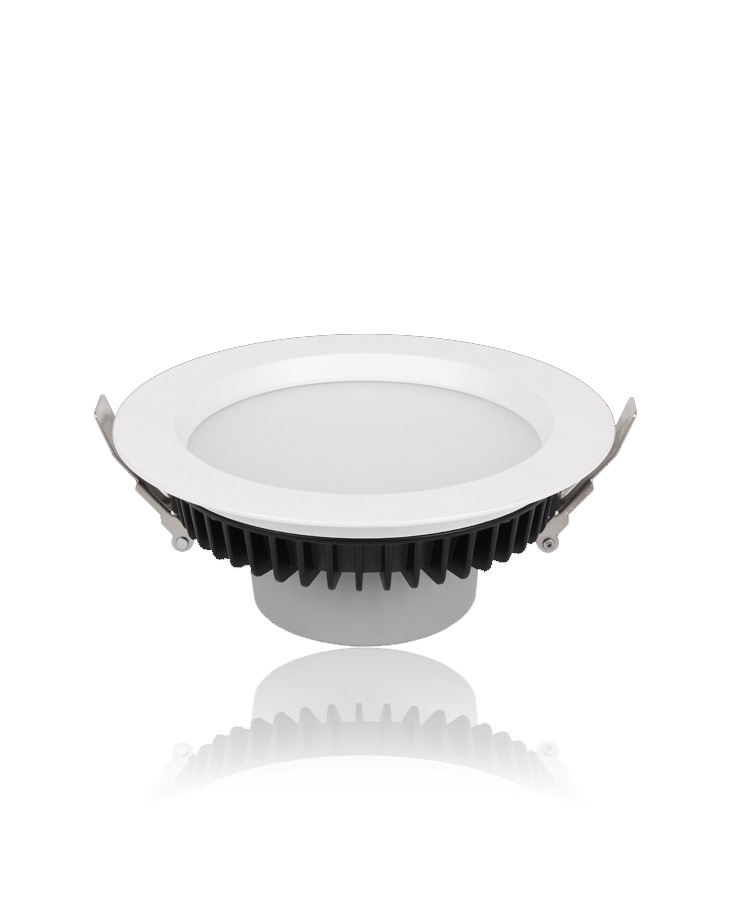

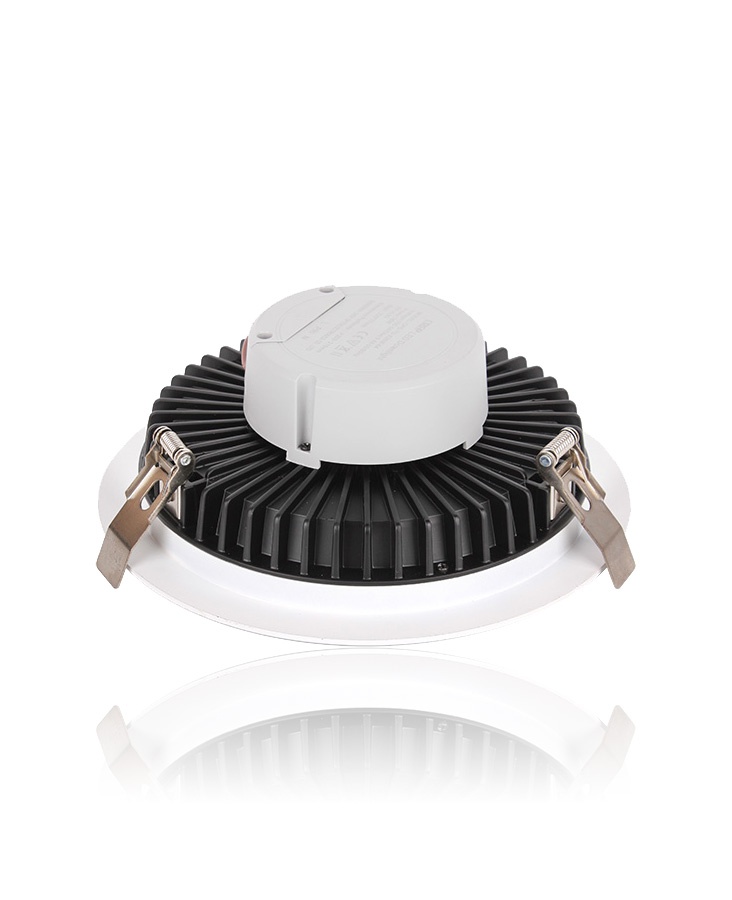

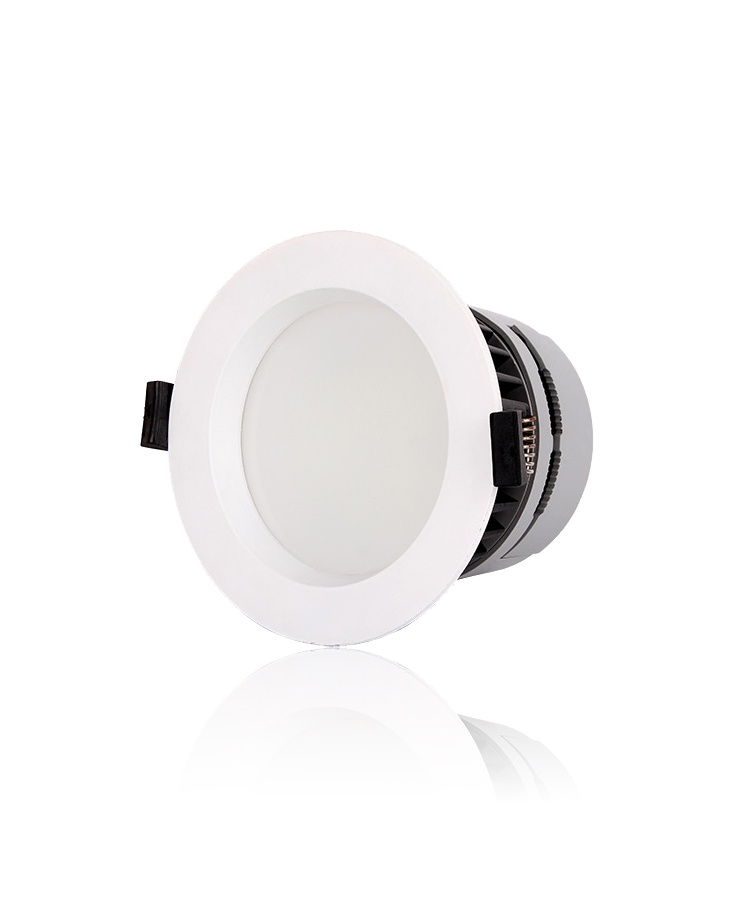

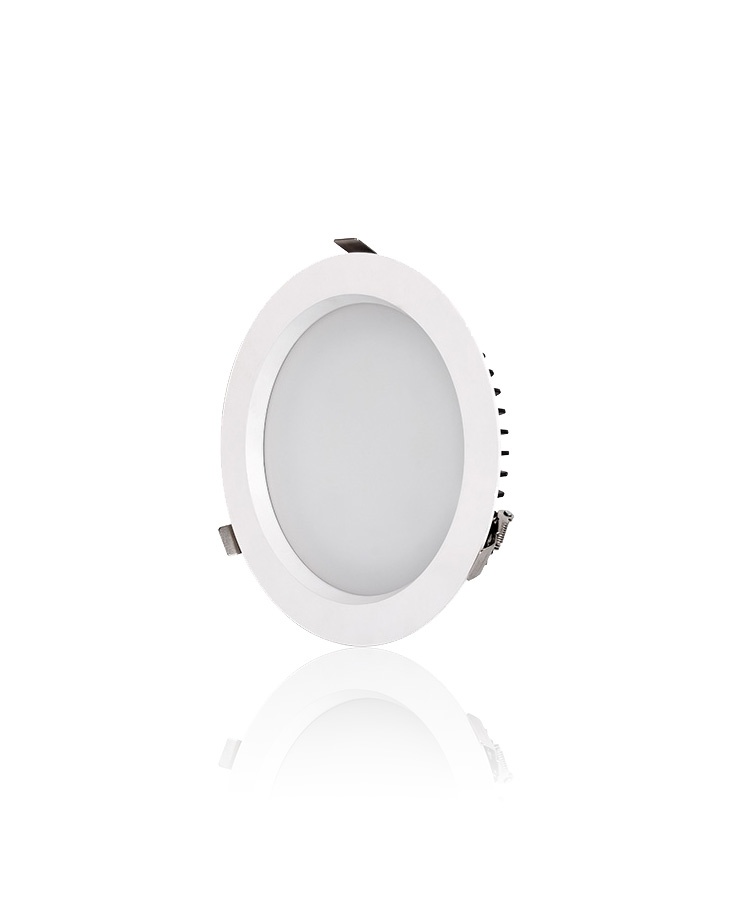

D9 3inch 10-12W

Product information

Input Voltage:  AC100-240V 50/60Hz
Operation Voltage: DC36-42V
Power Factor: 0.75-0.9
Operation Temperature: -15°C~+50°C
Storage Temperature: -25°C~+55°C

Enquiryback

Product details

Key Features
• SMD2835 as light source
• CB Approved driver
• In-house design
• Easy Recessed installation
• ENEC,CE,RoHS,CB
• 3 Years warranty

Construction Features
• Die-case housing as heatsink
• High transmission PC cover
• Various of installation clip

Technical Features
• Input Voltage:  AC100-240V 50/60Hz
• Operation Voltage: DC36-42V
• Power Factor: 0.75-0.9
• Switching cycle before failure: 50,000
• IP Rating: IP20
• Life Span: 50,000 hours
• Operation Temperature: -15°C~+50°C
• Storage Temperature: -25°C~+55°C

Datasheet

Product Name

Product Code

Rated Power

Product Size

Cut-hole

Input
Voltage

LED
Type

Power Factor

Luminous Flux (LM)

Lumen Efficacy

(LM/W)

CRI

3/10W

ED-R3A10-D9

10W

110*74mm

D86mm

AC100-240V

SMD2835

PF>0.9

750-850 lm

85

Ra>80

3/12W

ED-R3A12-D9

12W

110*74mm

D86mm

AC100-240V

SMD2835

PF>0.9

920-1000 lm

85

Ra>80
