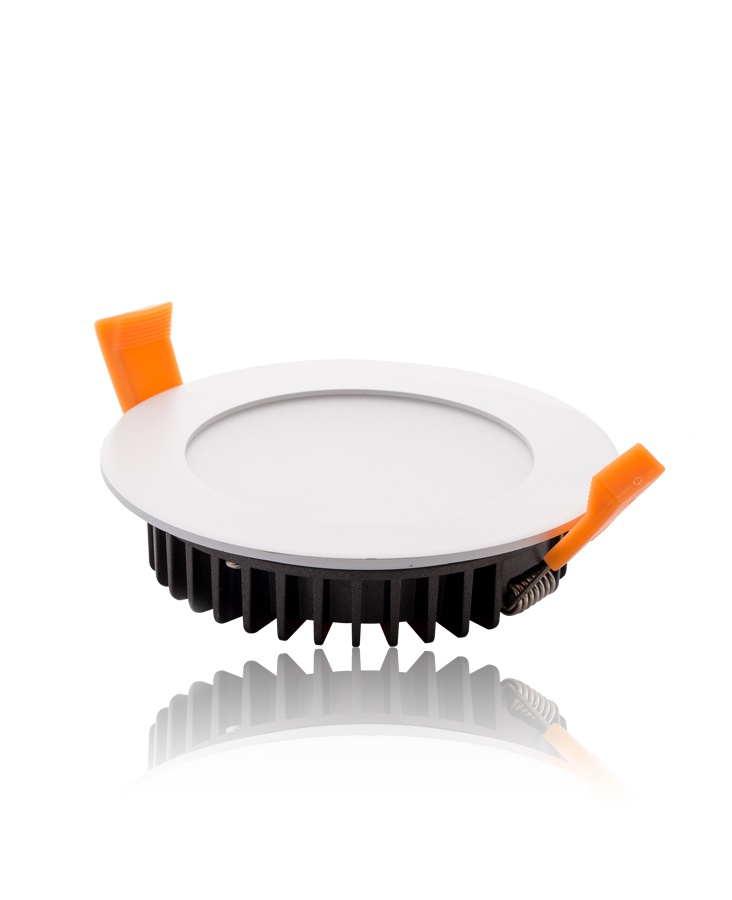

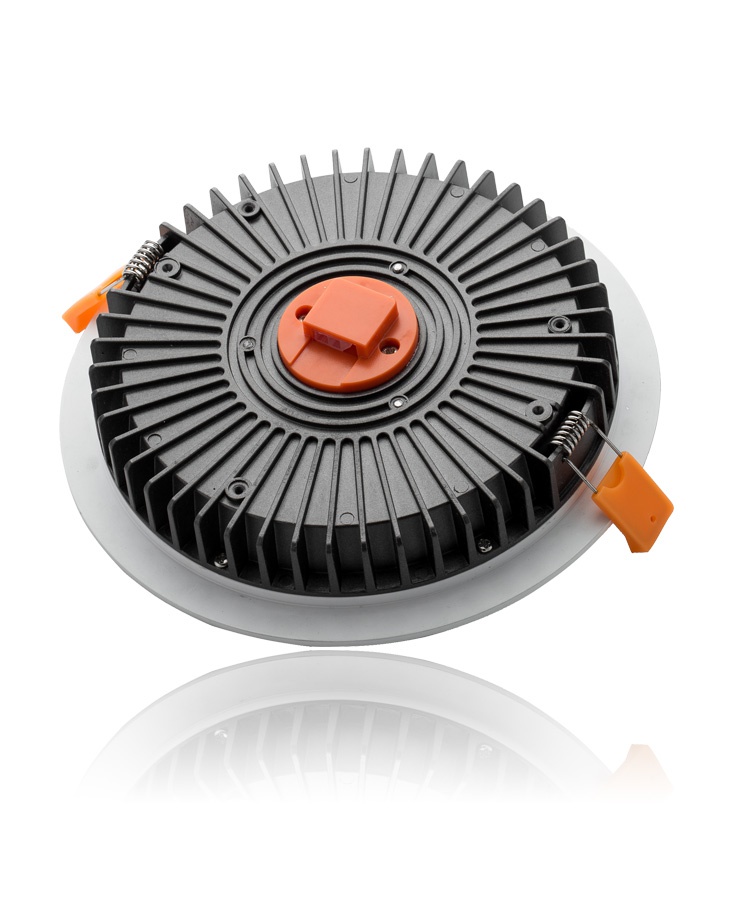

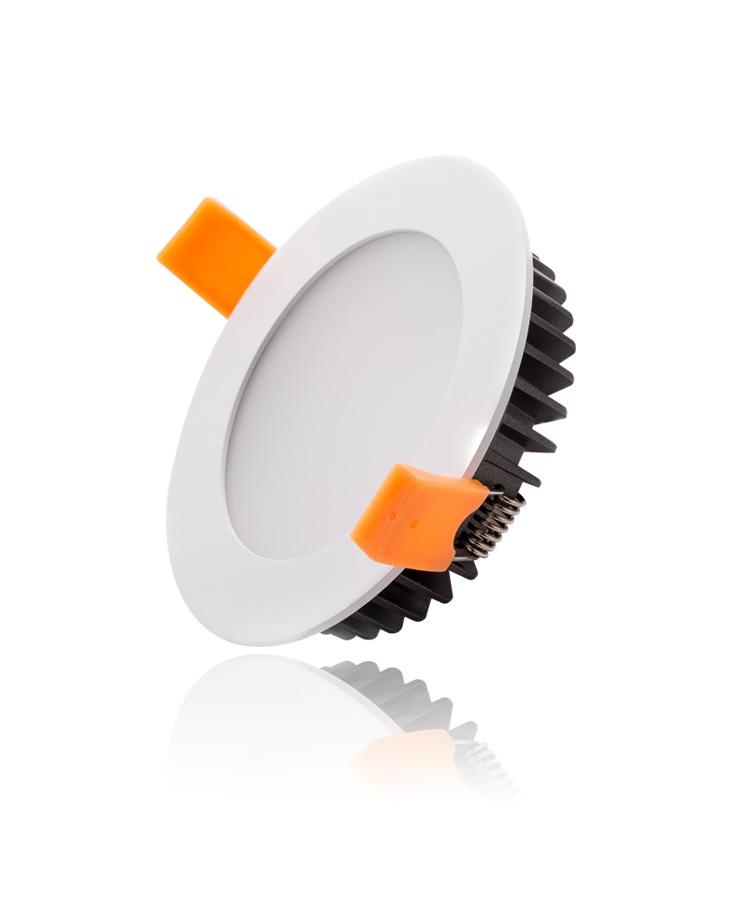

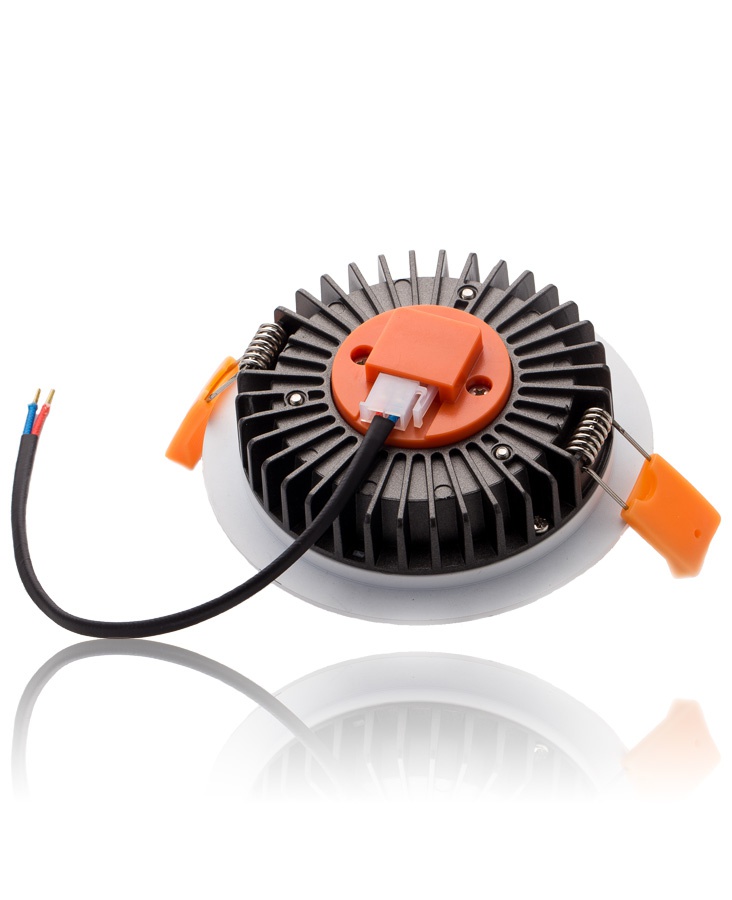

X4 6inch 30W downlight

Product information

Input Voltage:  AC100-240V 50/60Hz
Operation Voltage: DC36-42V
Life Span: 50,000 hours
Operation Temperature: -15°C~+50°C
Storage Temperature: -25°C~+55°C

Enquiryback

Product details

Key Features
• SMD LED 2835 (Epistar or Samsung)
• Lumen/CRI: 130lm/w @CRI80/90
• Housing material: die-casting aluminum
• Driver: Isolated Driver  PF>0.95 PF>80%
• CE,RoHS,SAA
• IP44
• 3-5 Years warranty

Technical Features
• Input Voltage:  AC100-240V 50/60Hz
• Operation Voltage: DC36-42V
• Life Span: 50,000 hours
• Operation Temperature: -15°C~+50°C
• Storage Temperature: -25°C~+55°C

Construction Features
•With stronger heat-sink and higher lumen out put. Very comfortable and uniform light;
• High lumen output powered by high performance Samsung or Epistar with consistent color temperature;
• Replace CFL Downlight and metal halide Down Light perfectly, UGR<19;
• IP44 protection grade guarantee system to be in moisture environment and inspect proof.
• Complete kit with Triac dimmable or 0-10V dimmable driver or Zigbee system.

Datasheet

Product name

Product Code

Rated Power

Dimension

(mm)

Cut-hole

(mm)

Input
Voltage

LED
Type

Beam

angle

Power Factor

Lumen/w

CRI

6/30W

ED-UDA30W-X4

30W

230*H38

200-220

AC100-240V

Epistar

90

PF>0.95

100-110

Ra>80
