Current position : Index > products > DL-ML-A-5W-15W-D80

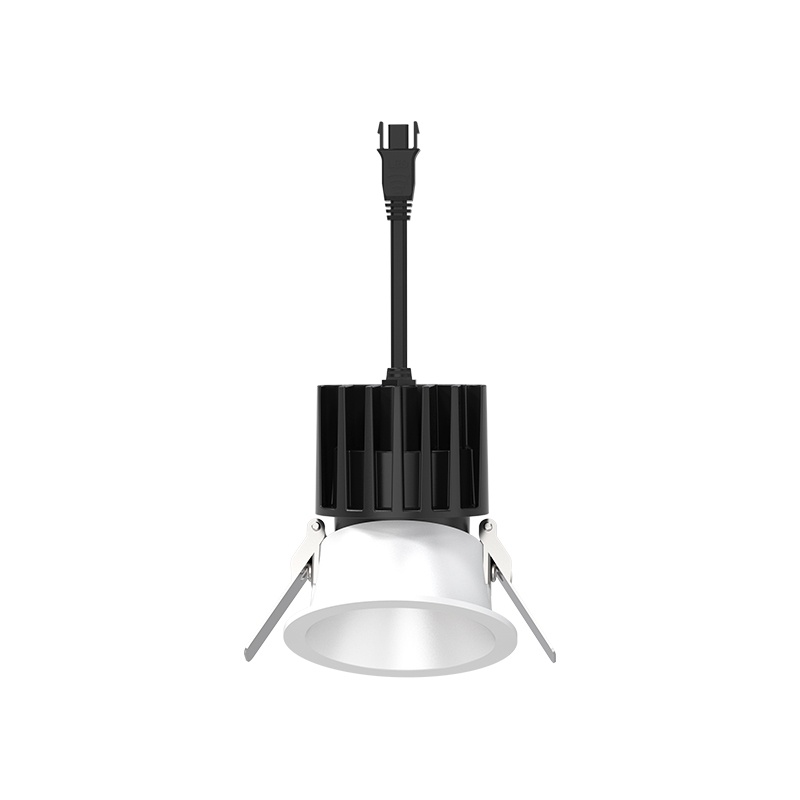

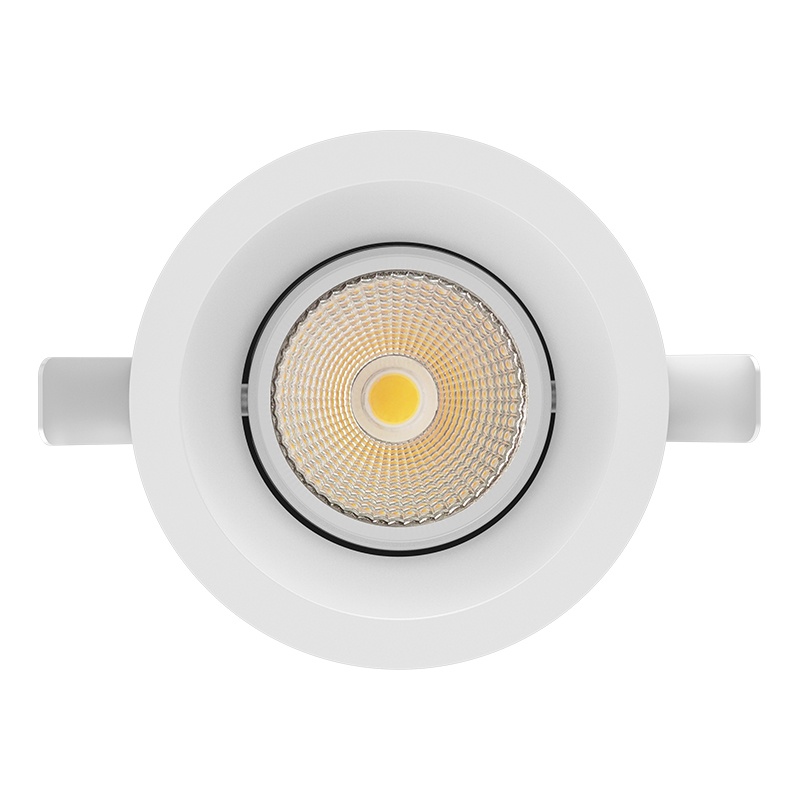

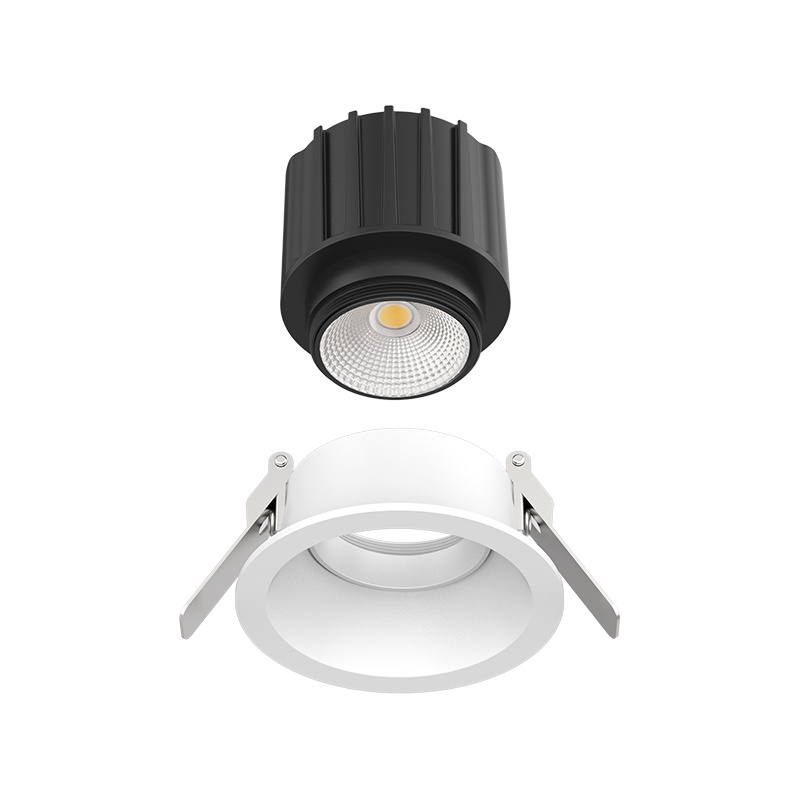

DL-ML-A-5W-15W-D80
Product information
Bridgelux LED as light source
OSRAM or TRIDONIC driver
Size D80XH90mm (Cut out 68mm)
Easy installation
ENEC, CE RoHS, CB
5 Years warranty
Product details
Key Features
• Bridgelux LED as light source
• OSRAM or TRIDONIC driver
• Size D80XH90mm (Cut out 68mm)
• Easy installation
• ENEC, CE RoHS, CB
• 5 Years warranty
Construction Features
• Die-case housing as heatsink
• Different reflector can be provided, black, white, silver
• Different beamangle LENS: 12°/24°/38°/60°

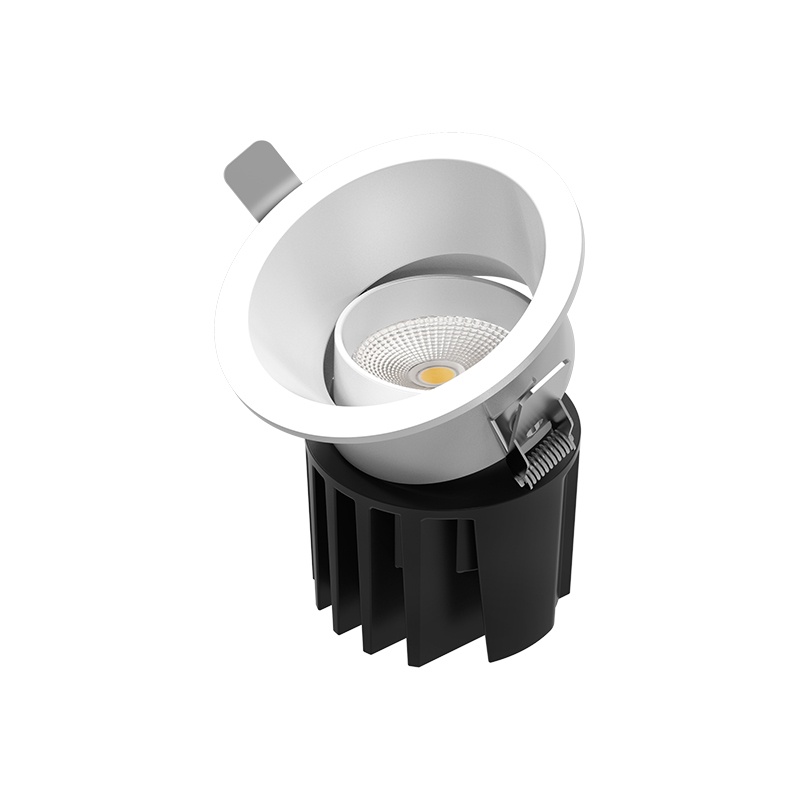

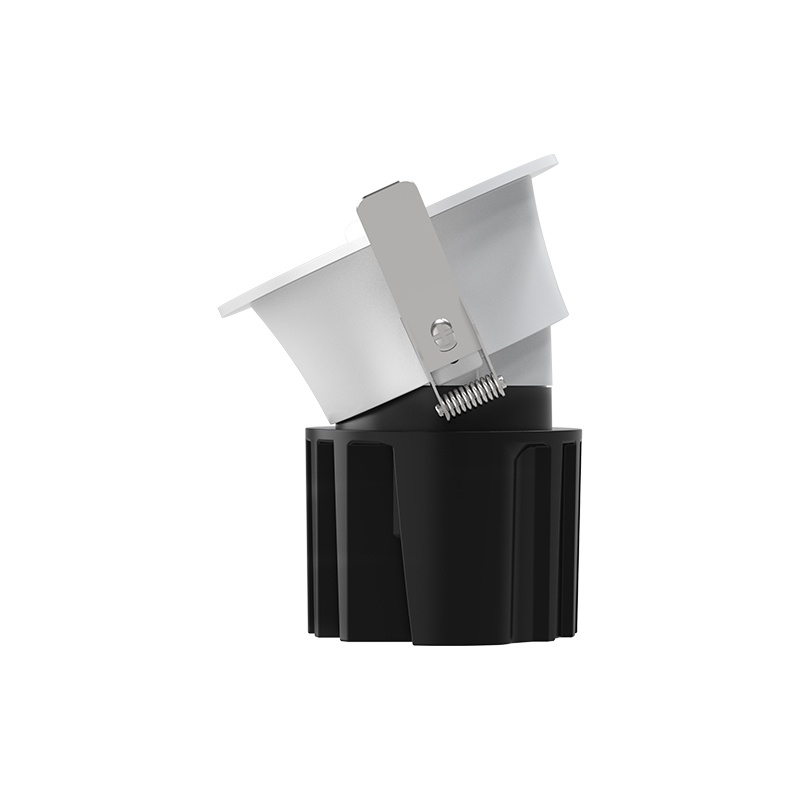

• Fixed type and Adjust type
Technical Features
• Input Voltage: AC100-240V 50/60Hz
• Operation Voltage: DC36-42V
• Power Factor: 0.75-0.9
• Switching cycle before failure: 50,000
• Life Span: 50,000 hours
• Operation Temperature: -15°C~+50°C
• Storage Temperature: -25°C~+55°C
Datasheet
|
Product Code |
Rated Power |
Product Size |
Input |
LED |
Power Factor |
Luminous Flux (LM) |
CRI |
|
DL-ML-A-5W-D80 |
5W |
size D80XH90mm Cut out 68mm |
AC100-240V |
Bridgelux LED |
PF>0.9 |
400-500 lm |
Ra>90 |
|
DL-ML-A-8W-D80 |
8W |
size D80XH90mm Cut out 68mm |
AC100-240V |
Bridgelux LED |
PF>0.9 |
750-850 lm |
Ra>90 |
|
DL-ML-A-10W-D80 |
10W |
size D80XH90mm Cut out 68mm |
AC100-240V |
Bridgelux LED |
PF>0.9 |
900-1000 lm |
Ra>90 |
|
DL-ML-A-15W-D80 |
15W |
size D80XH90mm Cut out 68mm |
AC100-240V |
Bridgelux LED |
PF>0.9 |
1350-1500 lm |
Ra>90 |
