PAR30
Product information
Input Voltage: 100-240V
Power Factor: 0.8-0.9
Lumen maintenance @6000h :>80%
Switching cycle before failure: 50,000
Product details
Key Features

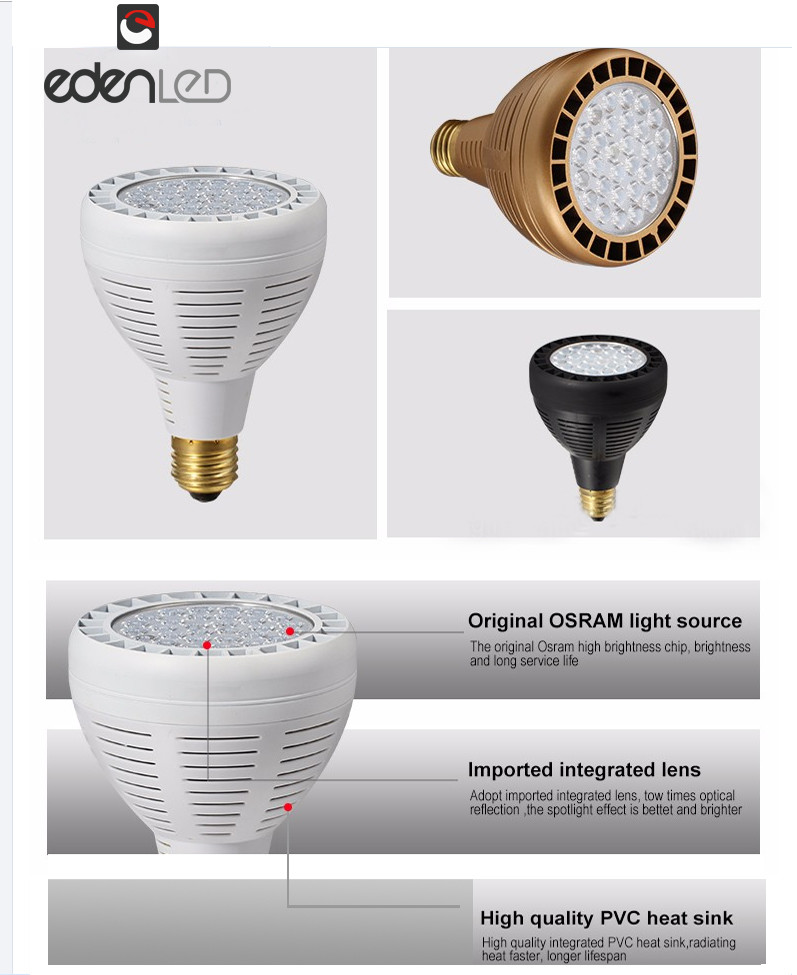

• OSRAM LED as light source
• CE,ROHS, UL
• 3 Years warranty
• If you use 11-12 hours per day. LED can not be replaced within 7 years
Construction Features
• Lamps housing painted anti-corrosion treatment
• High grade aluminium alloy combined with 94V-0 level PC plastic materials
• With cross ventilation, good heatsinking
Technical Features
• Input Voltage: 100-240V
• Power Factor: 0.8-0.9
• Lumen maintenance @6000h :>80%
• Switching cycle before failure: 50,000
• IP Rating: IP20
• Life Span: 50,000 hours
• Operation Temperature: -15°C~+50°C
• Storage Temperature: -25°C~+55°C
Datasheet
Product Name |
Product Code |
Product Size |
Rated Power |
Input |
LED |
PF Value |
Beam Angle |
Luminous Flux (LM) |
Remark |
Par30/30W |
ED-Par30-30W-sun |
φ90*120 |
30±2W |
100-240V |
OSRAM |
PF>0.95 |
24°/36°/100° |
≥2100lm |
|
Par30/40W |
ED-Par30-40W-sun |
φ90*120 |
40±2W |
100-240V |
OSRAM |
PF>0.95 |
24°/36°/100° |
≥3400lm |
|
Par30/45W |
ED-Par30-45W-sun |
φ90*120 |
45±2W |
100-240V |
OSRAM |
PF>0.95 |
15°/24°/36°/100° |
≥3150lm |
Project series |
Par30/45W |
ED-Par30-45W-sun1 |
φ90*120 |
45±2W |
100-240V |
OSRAM |
PF>0.95 |
15°/24°/36°/100° |
≥3400lm |
Project series |
Packing
Product Code |
Quantities/CTN(pcs) |
Inner Box(mm) |
Carton (mm) |
ED-Par30- Sun series |
30PCS/CTN 12.0kg |
98*98*127mm |
500*305*275mm |
