PAR20

Product information

Input Voltage:  100-240V
Power Factor: 0.8-0.9
Lumen maintenance @6000h :>80%
Switching cycle before failure: 50,000

Enquiryback

Product details

Key Features
• OSRAM LED as light source
• CE,ROHS, UL
• 3 Years warranty
• If you use 11-12 hours per day. LED can not be replaced within 7 years

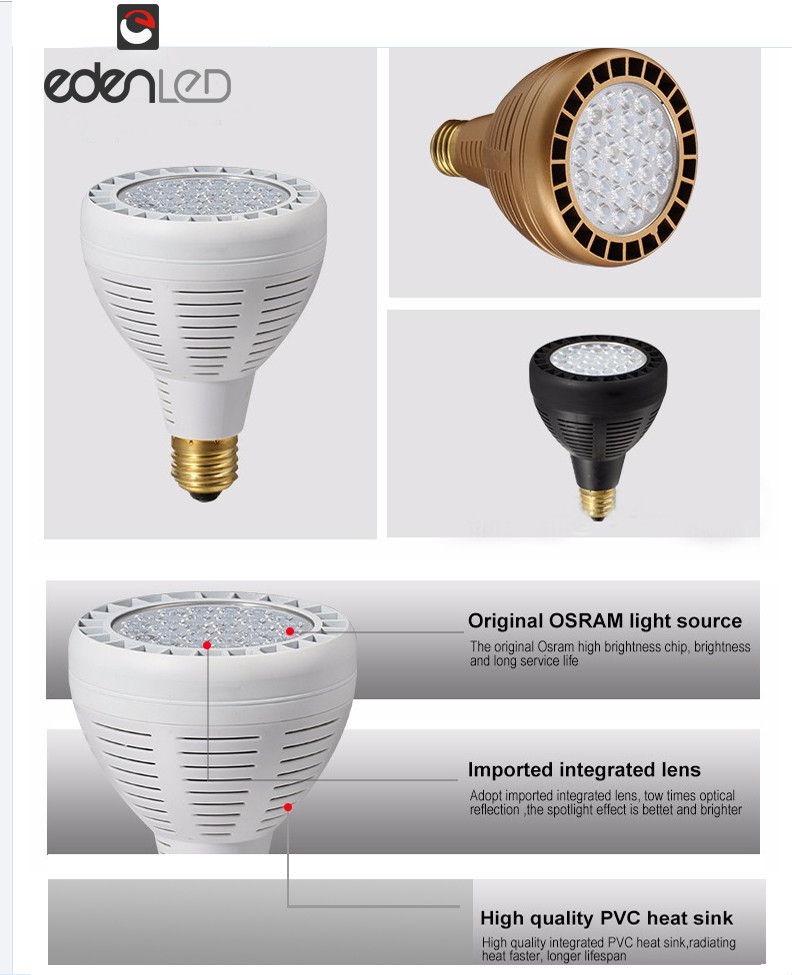

Construction Features
• Lamps housing painted anti-corrosion treatment
• High grade aluminium alloy combined with 94V-0 level PC plastic materials
• With cross ventilation, good heatsinking
Application
• Replaces traditional halogen
• Shopping mall, hotel, show window or clothing shop etc

Technical Features
• Input Voltage:  100-240V
• Power Factor: 0.8-0.9
• Lumen maintenance @6000h :>80%
• Switching cycle before failure: 50,000
• IP Rating: IP20
• Life Span: 50,000 hours
• Operation Temperature: -15°C~+50°C
• Storage Temperature: -25°C~+55°C

Datasheet

Product Name

Product Code

Product Size

Rated Power

Input
Voltage

LED
Type

PF Value

Beam Angle

Luminous Flux (LM)

Remark

Par20/25W

ED-Par20-25W-sun

φ64*92

25±2W

100-240V

OSRAM

PF>0.95

10°/15°/24°

≥1700lm

Project type

Par30/30W

ED-Par30-30W-sun

φ90*120

30±2W

100-240V

OSRAM

PF>0.95

24°/36°/100°

≥2100lm


Par30/40W

ED-Par30-40W-sun

φ90*120

40±2W

100-240V

OSRAM

PF>0.95

24°/36°/100°

≥3400lm


Par30/45W

ED-Par30-45W-sun

φ90*120

45±2W

100-240V

OSRAM

PF>0.95

15°/24°/36°/100°

≥3150lm

Project type

Par30/45W

ED-Par30-45W-sun1

φ90*120

45±2W

100-240V

OSRAM

PF>0.95

15°/24°/36°/100°

≥3400lm

Project type


Options

> Housing color optional: White/Silver/Black

> Warm white: WW/3000K

> Neutral white: NW/4000K

> Pure white: PW/5000K

> Cool white: CW/6500K



Packing

Product Code

Quantities/CTN(pcs)

Inner Box(mm)

Carton (mm)

ED-Par20- 25W-sun

70PCS/CTN  19.0kg

67*67*103mm

480*345*220mm
