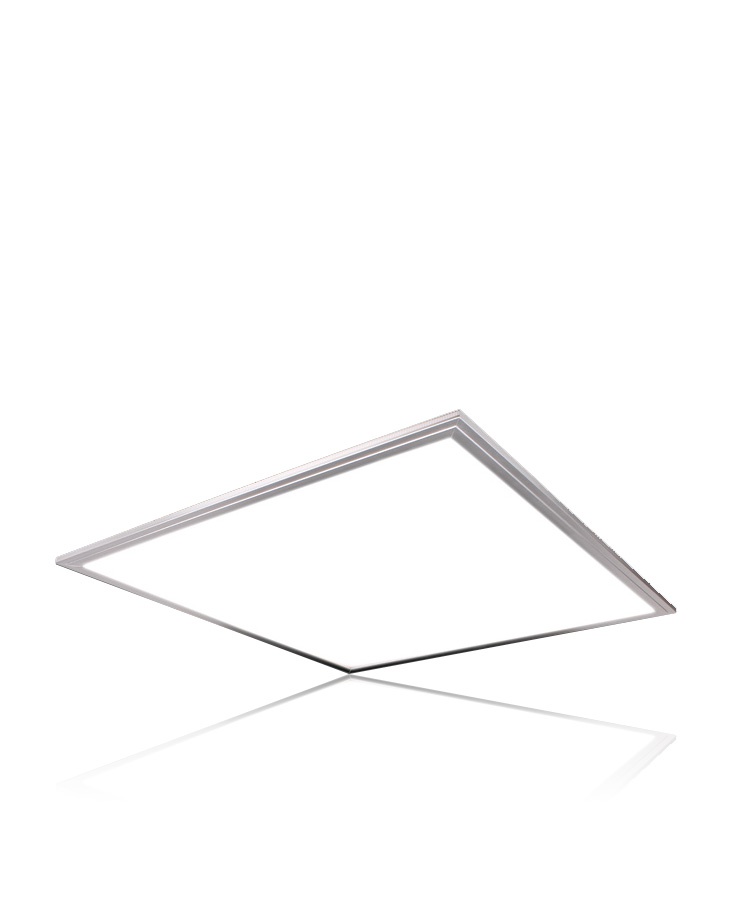

E1 Series Panel light

Product information

Input Voltage: AC100-240V 50/60Hz
Operation Voltage: DC36-42V
Total harmonic distortion: THD<15%
Power Factor: PF>0.92
Lumens maintenance @6000h: >80%

Enquiryback

Product details

Key Features
• LM-80 certified LED as light source

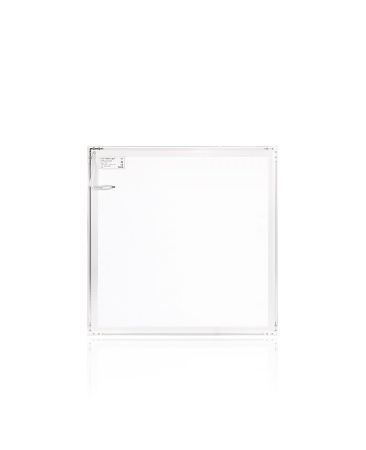

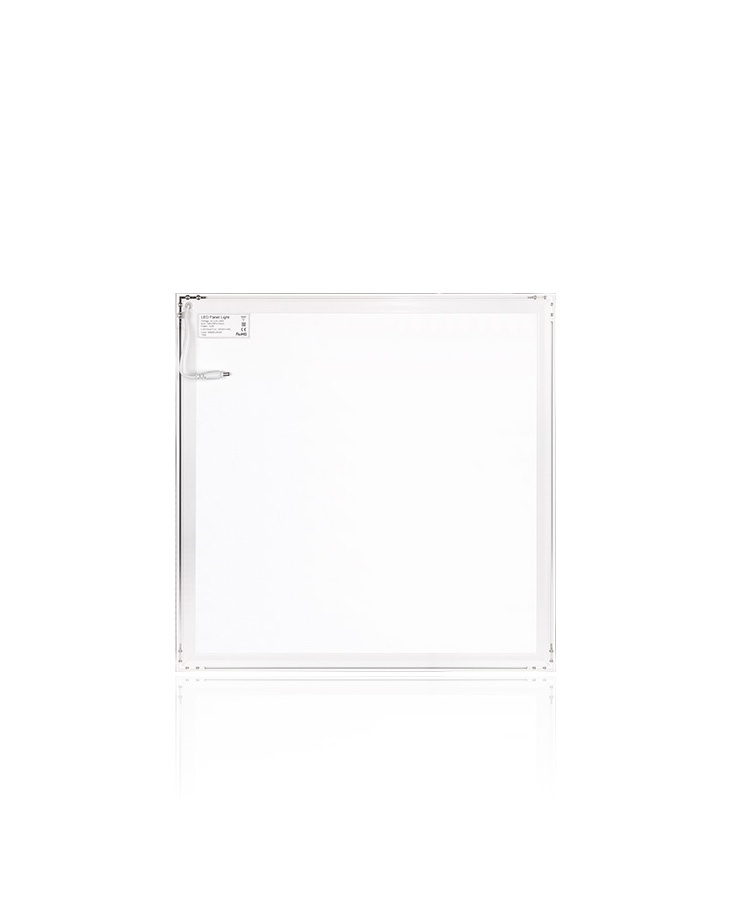

• Nice back board
• 0-10V Dimmable function
• Adopt TV light guide technology with laser print LGP

Construction Features

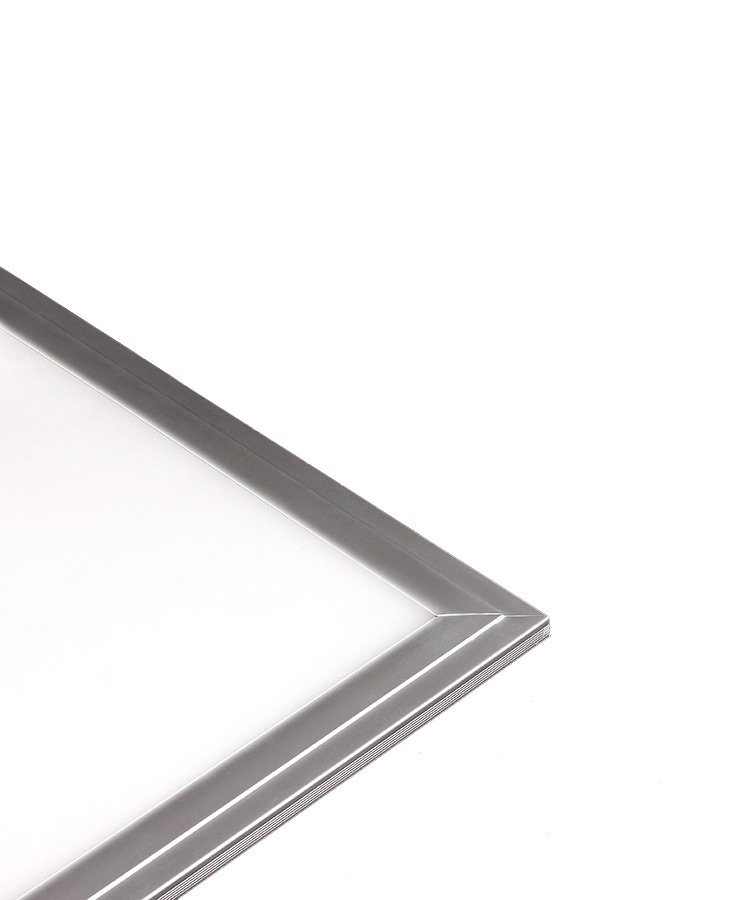

• Extra thin Aluminum Frame 10mm
• Housing material: Aluminum + PMMA + Diffuser
• Even light, feel comfortable looking at the light

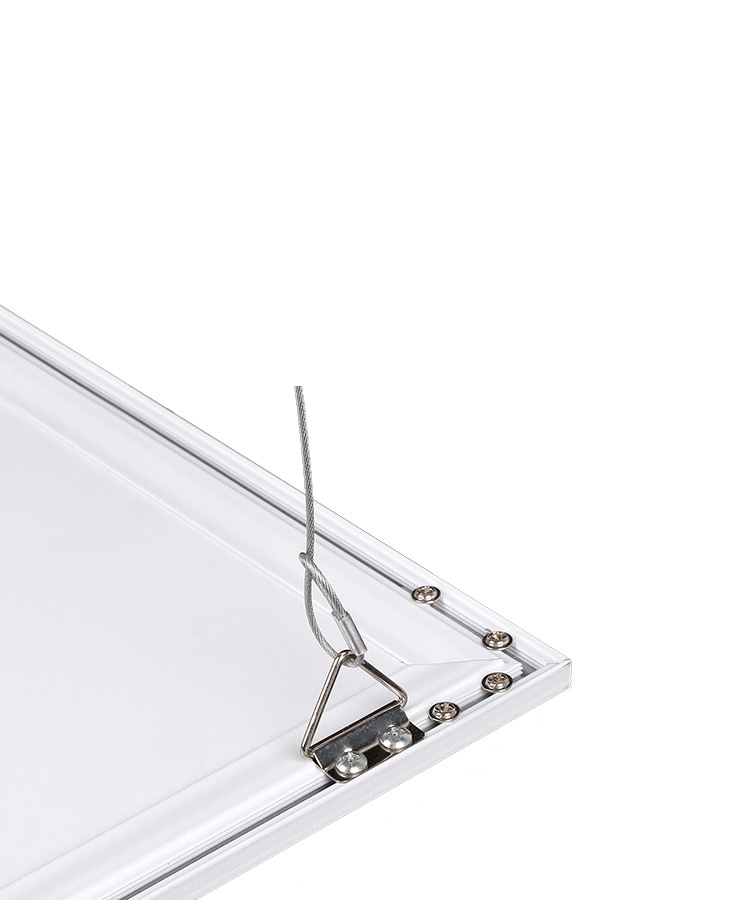

• In-built / Surface mounted / Suspension installation

Application
• Replaces fluorescent grid
• Retails, offices, schools, hospitals, Libraries
• Corridors and stairwells
• Suspended ceiling lighting for offices

Technical Features
• Input Voltage: AC100-240V 50/60Hz
• Operation Voltage: DC36-42V
• Total harmonic distortion: THD<15%
• Power Factor: PF>0.92
• Color Index: Ra>83
• Lumens maintenance @6000h: >80%
• Switching cycle before failure: 100,000
• IP Rating: IP20
• Life Span: 50,000 hours
• Operation Temperature: -25°C~+45°C
• Storage Temperature: -25°C~+55°C

Data sheet

Product Name

Product Code

Product Size

Rated Power

Input
Voltage

LED
Type

Power Factor

Luminous Flux (LM)

Lumen Efficacy(LM/W)

CRI

300*300/20W

ED-3030A-20W-E1

295*295*10

20W

AC100-240V

SMD2835

PF>0.92

1700/2000

85-100

Ra>83

300*600/30W

ED-3060A-30W-E1

295*595*10

30W

AC100-240V

SMD2835

PF>0.92

2550/3000

85-100

Ra>83

300*1200/40W

ED-30120A-40W-E1

295*1195*10

40W

AC100-240V

SMD2835

PF>0.92

3400/4000

85-100

Ra>83

600*600/40W

ED-6060A-40W-E1

595*595*10

40W

AC100-240V

SMD2835

PF>0.92

3400/4000

85-100

Ra>83

619*619/40W

ED-6262A-40W-E1

619*619*10

40W

AC100-240V

SMD2835

PF>0.92

3400/4000

85-100

Ra>83

600*1200/70W

ED-60120A-70W-E1

595*1195*10

70W

AC100-240V

SMD2835

PF>0.92

5950/7000

85-100

Ra>83
