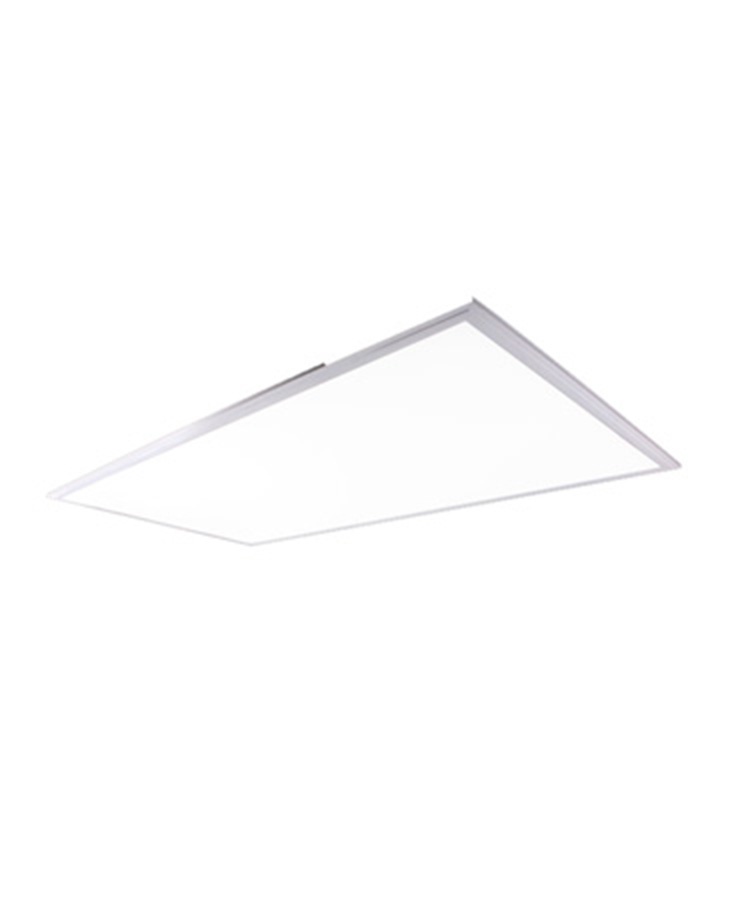

U series Panel light
Product information
Input Voltage: AC100-277V 50/60Hz
Operation Voltage: DC36-42V
Total harmonic distortion: THD<15%
Power Factor: PF>0.95
Color Index: Ra>83
Product details
Key Features
• LM-80 certified LED as light source
• AC100-277V Driver built-in junction box
• 0-10V Dimmable function
• DLC/ETL Approval
• 5 years warranty
Construction Features

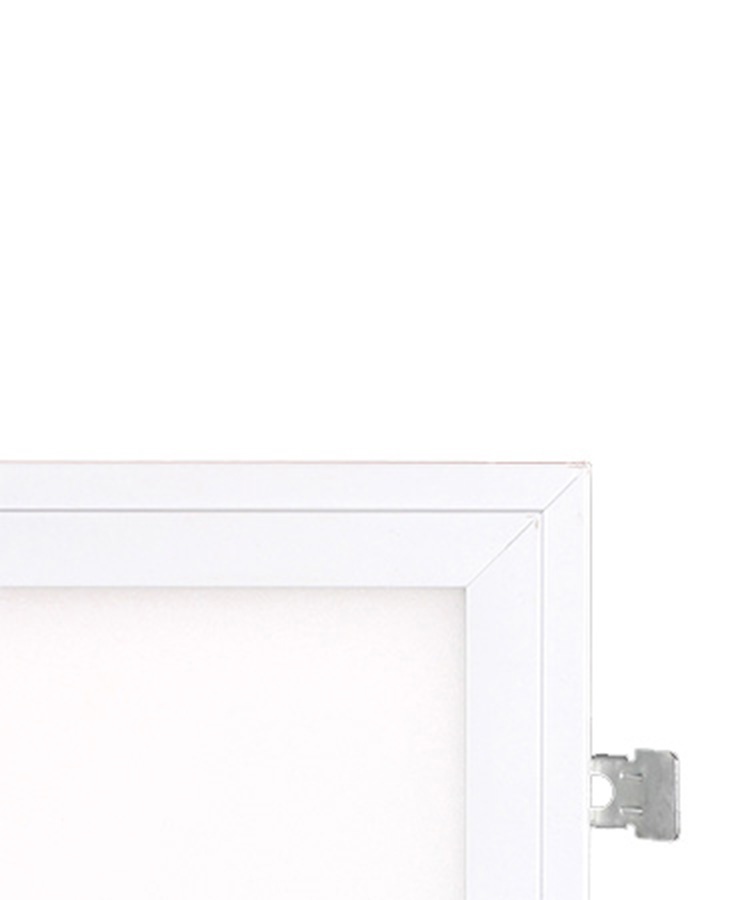

• Extra thin Aluminum Frame 10mm
• Frame color optional: White or silver
• Housing material: Aluminum + PMMA + Diffuser
• With quickly terminal for easy wiring

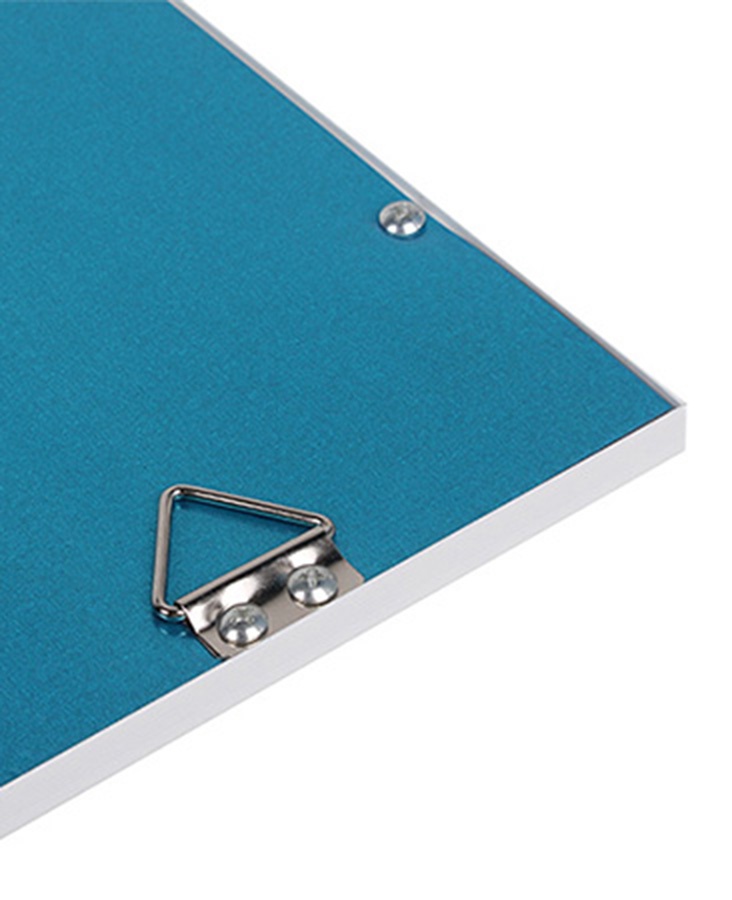

• In-built / Surface mounted / Suspension installation
Application
• Replaces fluorescent grid
• Retails, offices, schools, hospitals, Libraries
• Corridors and stairwells
• Suspended ceiling lighting for offices
Technical Features
• Input Voltage: AC100-277V 50/60Hz
• Operation Voltage: DC36-42V
• Total harmonic distortion: THD<15%
• Power Factor: PF>0.95
• Color Index: Ra>83
• Lumens maintenance @6000h: >80%
• Switching cycle before failure: 100,000
• IP Rating: IP20
• Life Span: 50,000 hours
• Warranty: 5 years
• Operation Temperature: -25°C~+45°C
• Storage Temperature: -25°C~+55°C
Datasheet
Product Name |
Product Code ETL Certificated |
Rated Power |
Input |
LED |
LED |
Power Factor |
Luminous Flux (LM) |
Lumen Efficacy(LM/W) |
CRI |
2x2ft/36W |
ED-6060A-36W-U1 |
36W |
AC100-277V |
SMD2835 |
204 |
PF>0.95 |
3600-4680 |
100-130 |
Ra>83 |
2x2ft/40W |
ED-6060A-40W-U1 |
40W |
AC100-277V |
SMD2835 |
204 |
PF>0.95 |
4000-5200 |
100-130 |
Ra>83 |
2x2ft/54W |
ED-6060A-54W-U1 |
54W |
AC100-277V |
SMD2835 |
204 |
PF>0.95 |
5400-7020 |
100-130 |
Ra>83 |
1x4ft/36W |
ED-30120A-36W-U1 |
36W |
AC100-277V |
SMD2835 |
204 |
PF>0.95 |
3600-4680 |
100-130 |
Ra>83 |
1x4ft/40W |
ED-30120A-40W-U1 |
40W |
AC100-277V |
SMD2835 |
204 |
PF>0.95 |
4000-5200 |
100-130 |
Ra>83 |
1x4ft/54W |
ED-30120A-54W-U1 |
54W |
AC100-277V |
SMD2835 |
204 |
PF>0.95 |
5400-7020 |
100-130 |
Ra>83 |
2x4ft/50W |
ED-60120A-50W-U1 |
50W |
AC100-277V |
SMD2835 |
240 |
PF>0.95 |
5000-6500 |
100-130 |
Ra>83 |
2x4ft/70W |
ED-60120A-70W-U1 |
70W |
AC100-277V |
SMD2835 |
336 |
PF>0.95 |
7000-9100 |
100-120 |
Ra>83 |
Note: Above lights: Warranty 3Years |
