For our X5/X6 downlight series

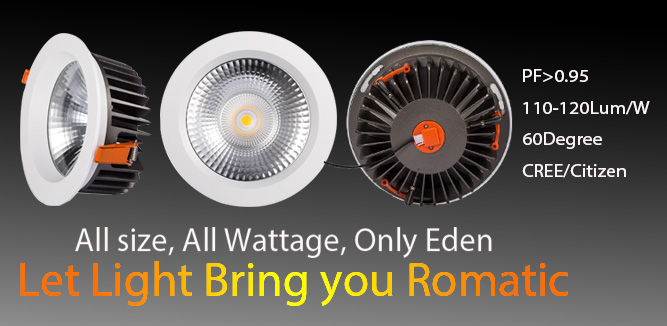

Item Name: X5 series LED downlight (UGR<19)

Cree  and Citizen COB   120lm/w
Philips EMC3030 SMD, LM-80
   Lumen/CRI: 110-120lm/W, CRI>80 ,CRI >97 ,
   125LM/W whole LED lighting
   Watt: 10W/15W/20W/30W/40W/50W/ 60W(COB only)

Size: D110*H53mm/cut hole90-100mm
         D145*H69mm/cut hole125-135mm
         D190*H86mm/cut hole165-170mm
         D230*H99mm/cut hole200-210mm

Housing material: die-casting aluminum ADC12

Driver: Isolated Driver, PF>0.95 ,PE>88%, passed CE,RoHS, also SAA Available.
IP Grade: IP44
Warranty time: 3-5 Years
