NEW  H series Track light is coming

Time:2017-07-12

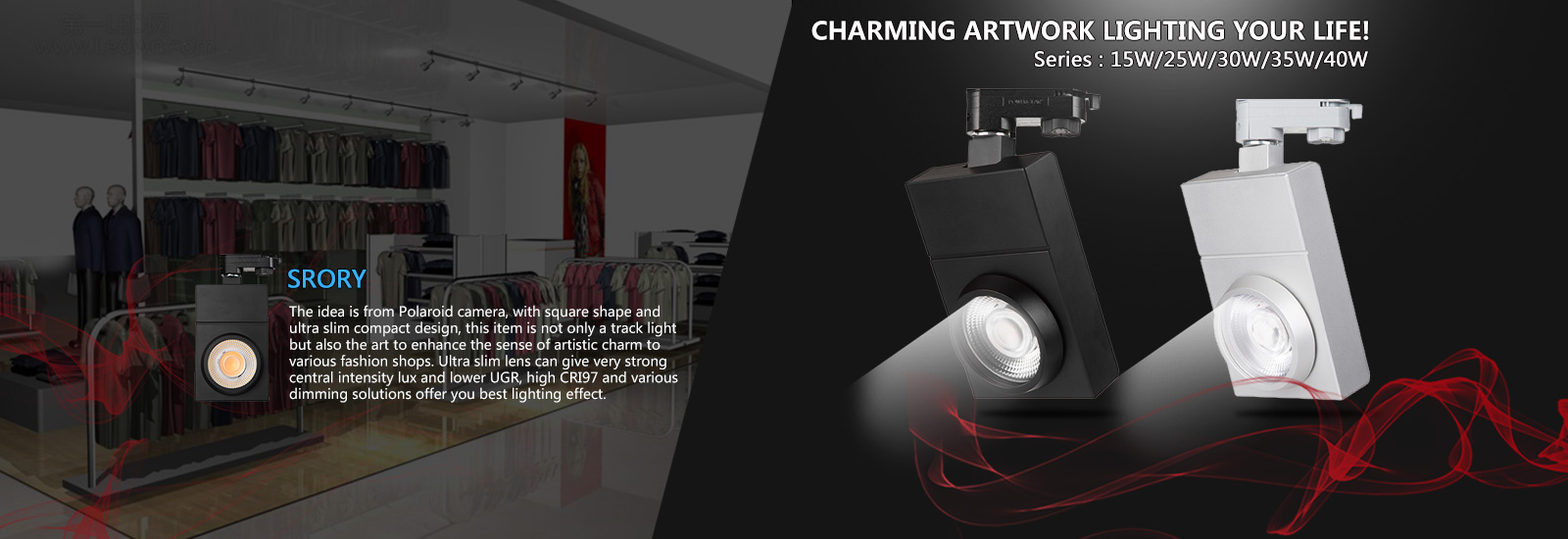

The idea is from Polaroid camera, with square shape and ultra slim compact design, this item is not only a track light but also the art to enhance the sense of artistic charm to various fashion shops.
Ultra slim lens can give very strong central intensity lux and lower UGR, high CRI97 and various dimming solutions offer you best lighting effect.


LED Track light Features:

6063 brushed aluminum alloy as body materials, better for heat dissipation
Citizen Version 6 COB LEDs as light sauce, higher lumen, higher CRI, lower thermal resistance
Tridonic, HEP isolated constant current LED driver, flicker free.
Super transparent lens for this lamps, can give us more choice for the beam angle and the lighting.



LED track light Parameter:

Body materials

6063 brushed aluminum

Track adapter

Global/Powergear

Phase

3phase/1phase

Housing color

Black/White/Silver

LED brand

Citizen/CREE

LED efficiency

110-140lm/W

Color&Kelvin

2700/3000K/4000K/5000K

CRI

80+/90+/97+

Macadam

within 3 step

Beam angle

15°/24°/36°  (lens),

LED driver

Tridonic/Philips/HEP

10°/23°/36°/60°(high power lens)

Voltage

AC200-240V/AC100-240V

Power factory

>0.95

THD

<15

Dimmable

TRIAC

LED Wattage

 24.9W

Lamp wattage

30W

Work temp.

-20-45degree

Light span

50000hours



LED track light Spectrum Distribution




Lumen distribution diagram


15Dgeree

24Degree

36Degree


Infrared Thermography

Installation manual
