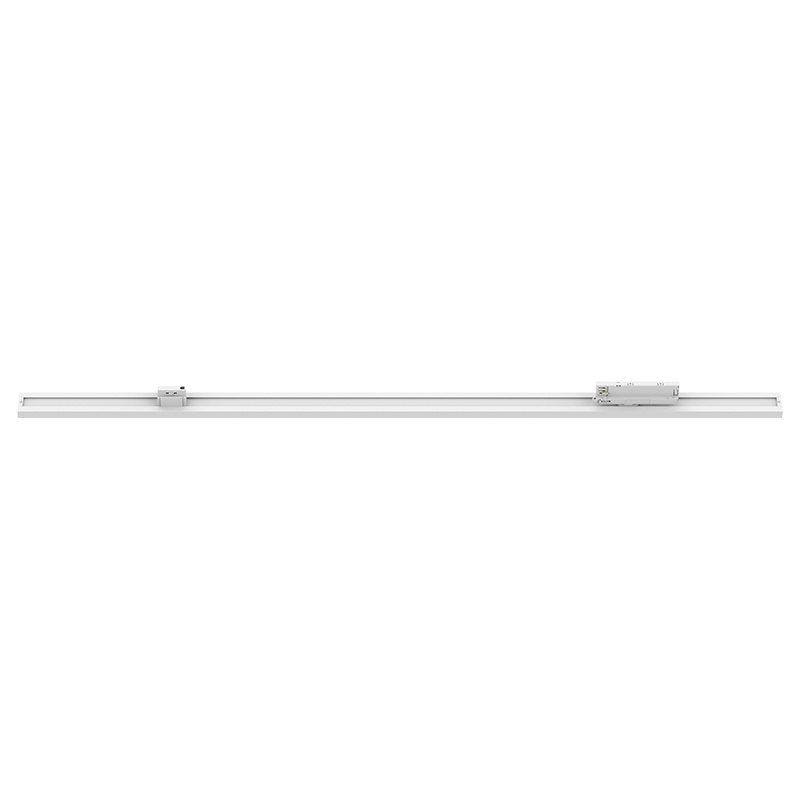

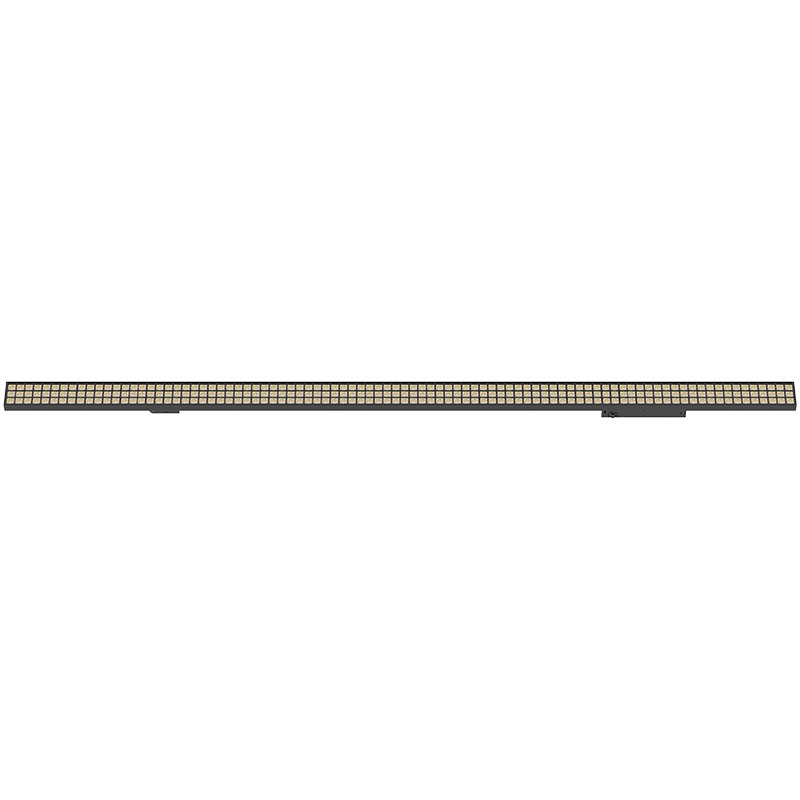

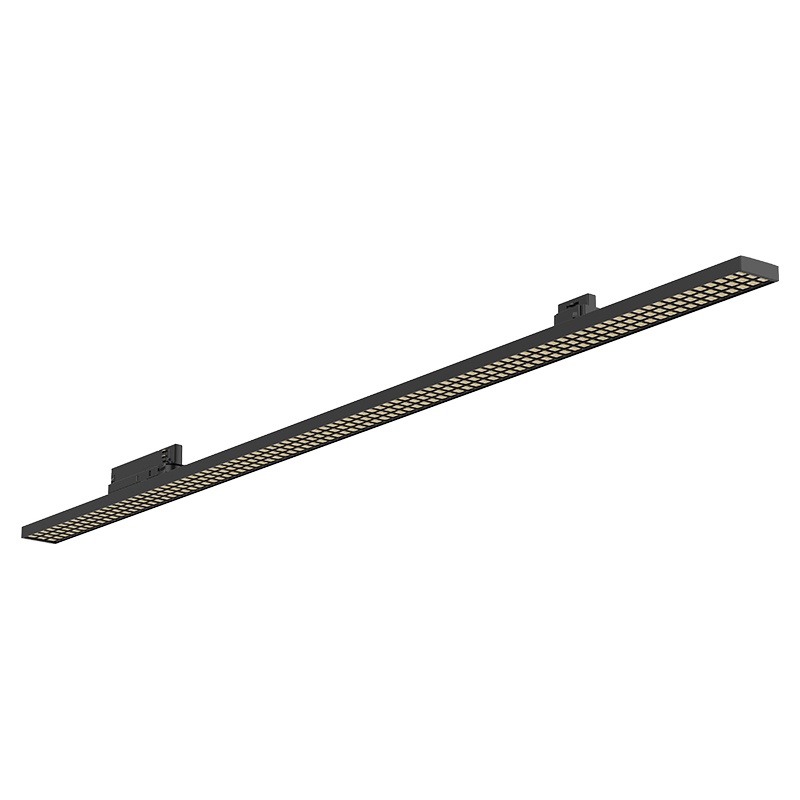

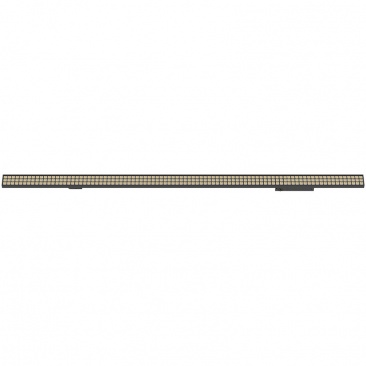

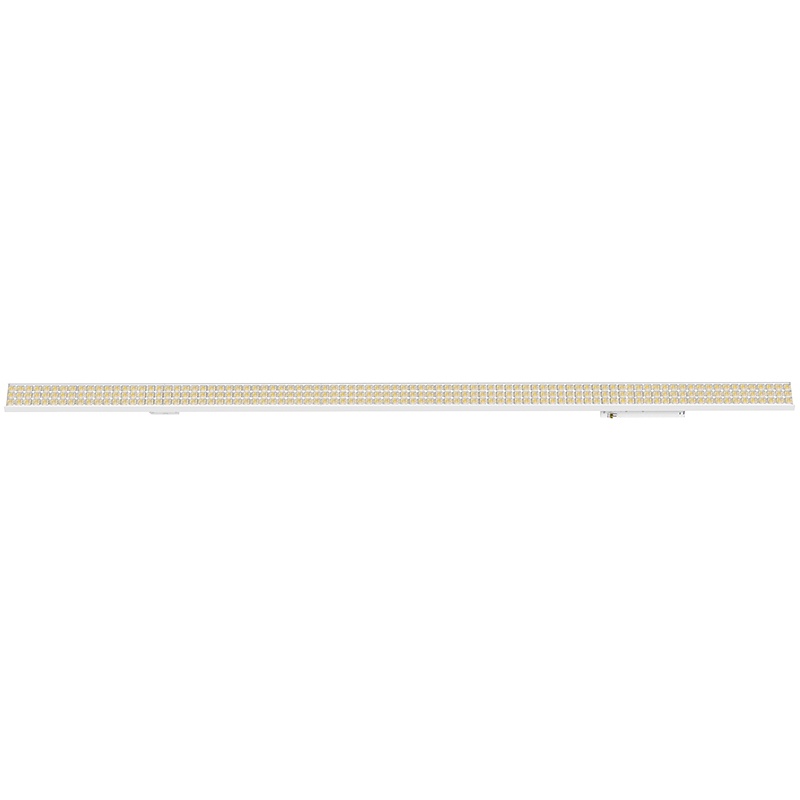

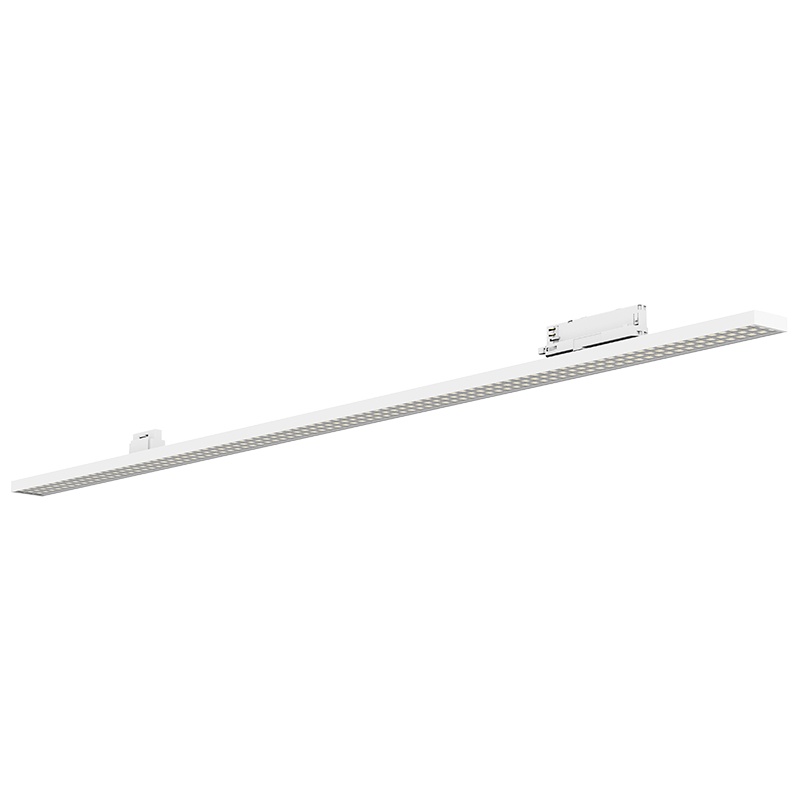

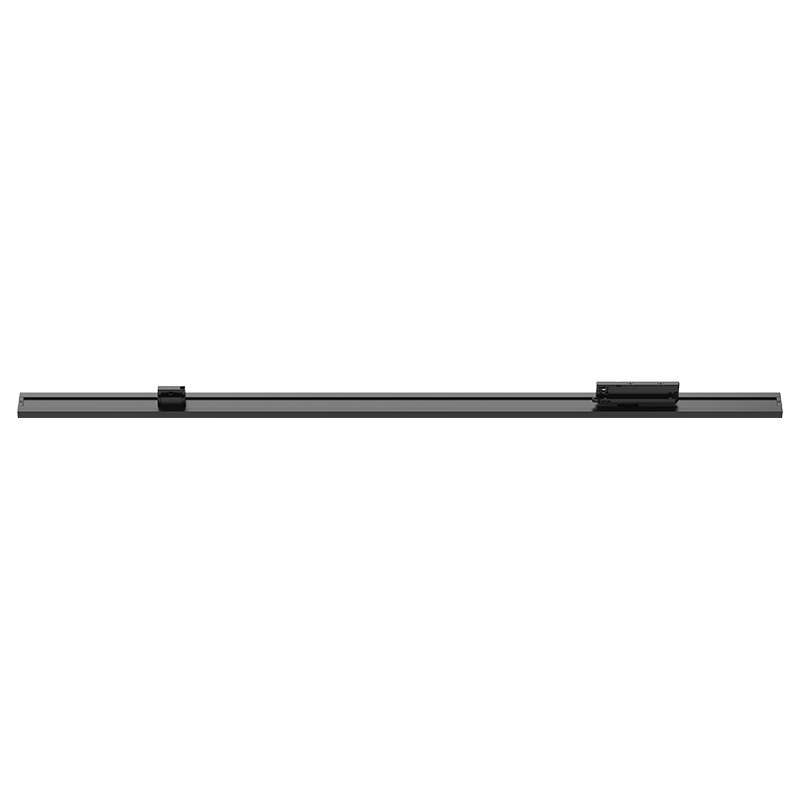

60W Slim Linear track light
Product information
High CRI: 97+ (2700K/3000K/4000K)
Good quality driver, flicker-free, PF>0.95
Powergear 4 wire 3 phase track adpater
High luminous efficiency >100lm/W @CRI80
Beam angle：30/60/90°
Wattage: 30W, 50W, 60W
Product details
Model No.: ED-LTL-60W-FL-5818
Advantages:
♦ High CRI: 97+ (2700K/3000K/4000K)
♦ Good quality driver, flicker-free, PF>0.95
♦ Powergear 4 wire 3 phase track adpater
♦ High luminous efficiency >100lm/W @CRI80
♦ Beam angle：30/60/90°
♦ Wattage: 30W, 50W, 60W
Key Features
• SMD2835/SMD3030
• Lumen/CRI: 80-120lm/W @CRI80 (whole lamp)
• 6063 brushed aluminum
• Size & Wattage: L605mm (20-30W), L1205mm (30-60W),
• Prism Diffuser version available
• Invisible integrated track version available
Datasheet
|
Product Code |
Rated Power |
Dimension (mm) |
Beamangle |
Input |
LED |
Power Factor |
Lumen LM |
CRI |
|
ED-LTL-50W-FL-5818 |
50W |
1491x58*52 |
30/60/90°
|
AC200-240V |
SMD2835/ SMD3030 |
PF>0.9 |
5000-5200 |
Ra>97 |
|
ED-LTL-60W-FL-5818 |
60W |
1491x58*52 |
AC200-240V |
SMD2835/ SMD3030 |
PF>0.9 |
6000-6200 |
Ra>97 |
|
|
EDL-TL-70W-FL-5818 |
70W |
1491x58*52 |
AC200-240V |
SMD2835/ SMD3030 |
PF>0.9 |
7000-7200 |
Ra>97 |
|
|
EDL-TL-80W-FL-5818 |
80W |
1491x58*52 |
AC200-240V |
SMD2835/ SMD3030 |
PF>0.9 |
8000-8200 |
Ra>97 |

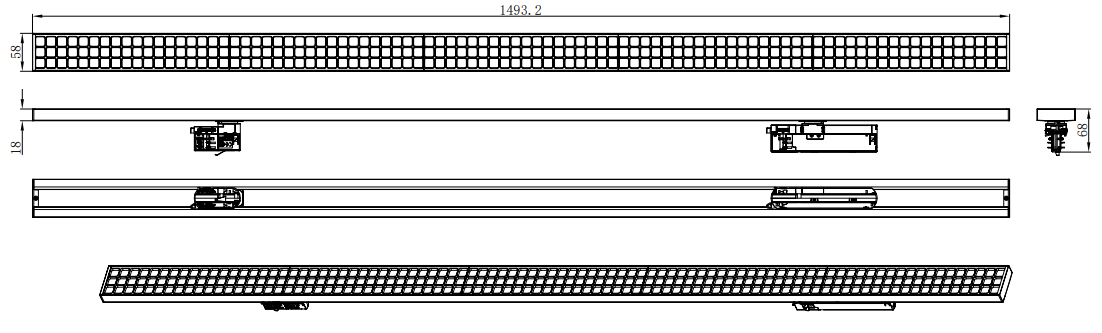

Size:
